| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

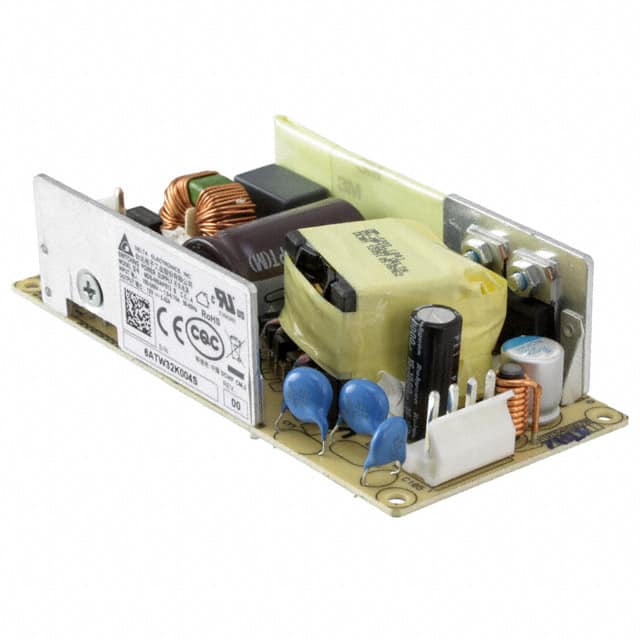

This Delta Electronics MDS-065APS12 BA is an open-frame AC/DC converter with a power rating of 65W and an output current of 5A. It operates with an efficiency of 85% and features universal input capabilities along with a standby output.
The converter is designed for chassis mounting and has dimensions of 101.6mm x 50.8mm x 30.5mm. It is suitable for applications in ITE (Commercial) and Medical fields. The unit is approved by CB Scheme, CE, CQC, EN, and UL, and complies with standards such as 50581, 55011, 55032, 60601-1, and 60950-1.
Key electrical specifications include a single output and an isolation voltage of 4 kV. The operating temperature range is from -10°C to 70°C. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level is MSL1.
-10°C to 70°C.
12V.
85%.
4000V (4kV).
101.6mm x 50.8mm x 30.5mm (4.00" x 2.00" x 1.20").
ITE (Commercial) and Medical applications.
CB Scheme, CE, CQC, EN, UL.
