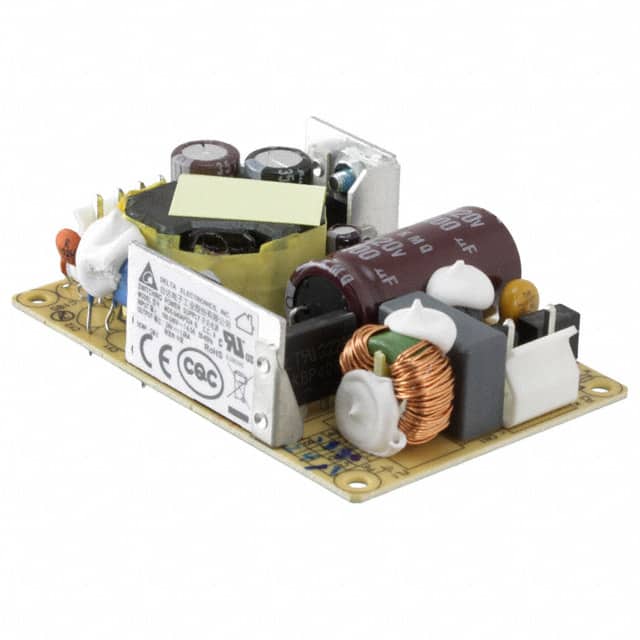

This Delta Electronics MDS-040APS24 BA is an AC/DC converter with a power rating of 40W and an output voltage of 24V. It is designed as an open frame unit, suitable for chassis mounting.
Key features include standby output and universal input capabilities, making it versatile for various applications. The converter operates within a temperature range of -10°C to 70°C and has an efficiency of 84%. It meets several standard safety and emissions requirements, including CB Scheme, CE, EN, UL, and specific standards like 60601-1 and 62368-1.
Designed for applications in ITE (Commercial) and Medical fields, this converter offers a voltage isolation of 4 kV. Its dimensions are 76.2mm in length, 50.8mm in width, and 22.9mm in height.
24V
It uses a chassis mount configuration.
-10°C to 70°C.
4 kV.
84%.
UL, CE, EN, CB Scheme, IEC 60601-1, IEC 60950-1, and IEC 62368-1.
