| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

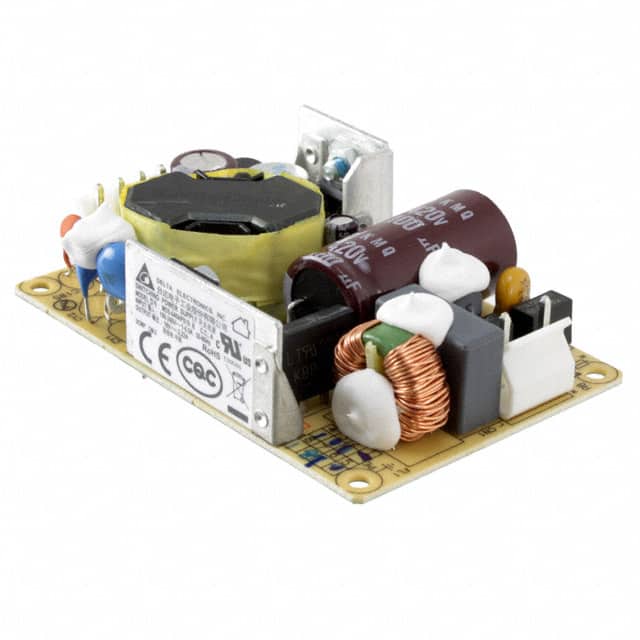

The Delta Electronics MDS-040APS18 BA is an open frame AC/DC converter designed for reliable power conversion. It delivers 40W of power with an 18V output voltage and a current rating of 2.2A.
This converter features a universal input voltage range of 85 to 264 VAC and operates efficiently at 84%. Its compact dimensions (76.2mm x 50.8mm x 22.9mm) and chassis mount type make it suitable for integration into various systems.
Designed for applications in ITE (Commercial) and Medical fields, the MDS-040APS18 BA meets several standard certifications including CB Scheme, CE, EN, UL, and complies with standards such as 50581, 55011, 55032, 60601-1, and 60950-1. It operates within a temperature range of -10°C to 70°C.
The output voltage is 18V at 2.2A.
85 to 264 VAC.
-10°C to 70°C.
Chassis mount, 76.2mm x 50.8mm x 22.9mm.
84%.
4 kV.
CB Scheme, CE, EN, UL.
