| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

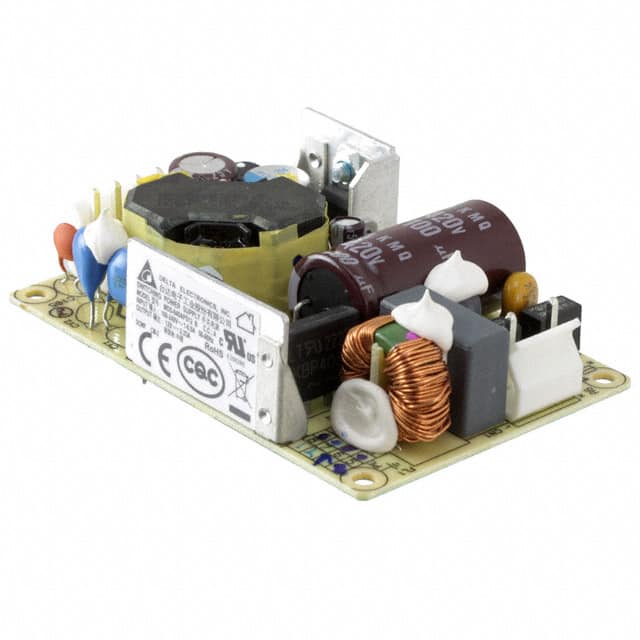

This Delta Electronics MDS-040APS12 BA is an AC/DC converter with a power rating of 40W and an output voltage of 12V. It is designed as an open frame unit, suitable for chassis mounting applications. The converter features standby output and universal input capabilities, making it versatile for various power supply needs.
Key specifications include an efficiency of 84%, an isolation voltage of 4 kV, and an operating temperature range of -10°C to 70°C. It is compliant with several standards including 50581, 55011, 55032, 60601-1, and 60950-1. The dimensions are 76.2mm in length, 50.8mm in width, and 22.9mm in height.
Applications for this converter include ITE (Commercial) and Medical sectors. It has a single output and meets RoHS3 compliance. The part number is MDS-040APS12 BA.
The output voltage is 12V DC.
The output current is 3.3 A.
-10°C to 70°C.
84%.
4 kV.
CB Scheme, CE, EN, UL.
76.2mm x 50.8mm x 22.9mm (3.00" x 2.00" x 0.90").
