| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Voltage | |
| Applications | |
| Approval Agency | |
| Current | |
| DC Voltage | |
| Efficiency | |
| Features | |
| Height | |
| Input Type | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Ripple & Noise (max.) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

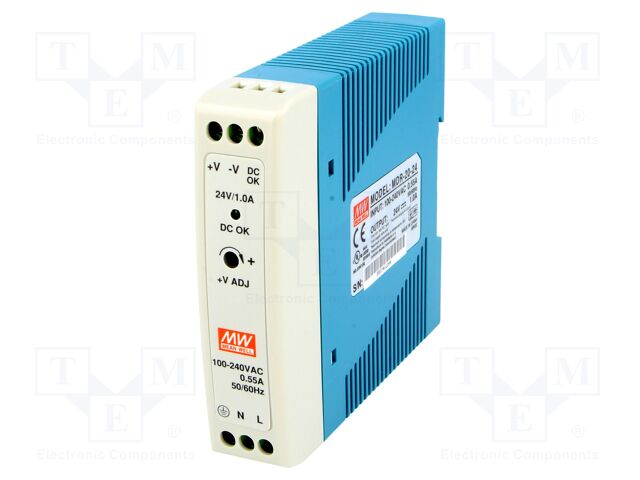

The Mean Well USA MDR-20-24 is an enclosed industrial power supply designed for DIN rail mounting. It offers a 24W output power with a stable 24V DC voltage.
This power supply features a universal input range of 85 to 264 VAC, allowing for flexible integration into various power systems. It also supports AC or DC input types. The unit boasts an efficiency of 84% and a low ripple and noise level of 150mVp-p.
Key electrical specifications include a 24V DC output current of 1A and a high isolation voltage of 3 kV. The operating temperature range is -20°C to 70°C, with derating applied at higher temperatures. Its mechanical dimensions are 100.0mm in length, 22.5mm in width, and 90.0mm in height.
Designed for industrial and ITE commercial applications, the MDR-20-24 complies with standards such as UL 508 and IEC 62368-1. Approval agencies include CB, CE, cULus, and TUV, ensuring broad market acceptance.
The output voltage is 24V DC.
The maximum output current is 1A.
The power rating is 24W.
The input voltage range is 85 ~ 264 VAC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 100.0mm (L) x 22.5mm (W) x 90.0mm (H).
It meets standards 62368-1 and UL 508.
