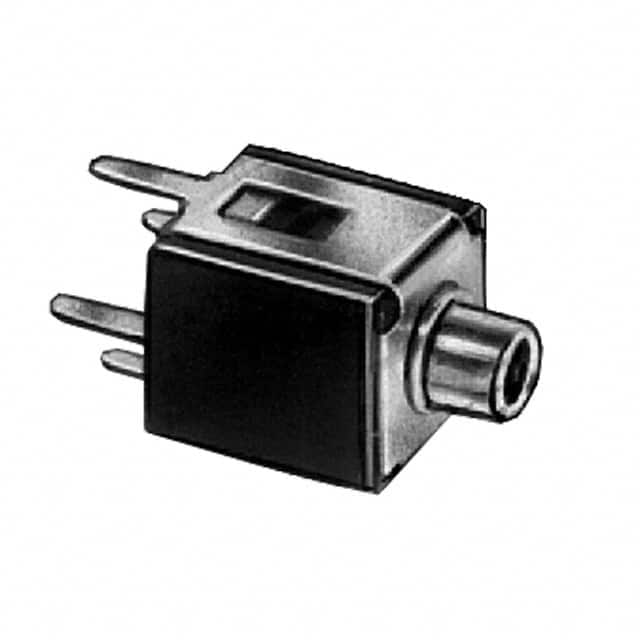

MDPC2A MDPC2A is a mono phone jack connector with female gender, 2.46mm mating diameter, through hole mounting, and solder termination.
Mfr Part #:

MDPC2A

Available from 1 distributors
Mfr Name: Conxall/Switchcraft
Conxall/Switchcraft
MDPC2A is a mono phone jack connector with female gender, 2.46mm mating diameter, through hole mounting, and solder termination.
✓ Total Stock: 100 pcs
$ Price Range: $2.68 - $4.07

MDPC2A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDPC2A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actual Diameter
Connector Type
Gender
Industry Recognized Mating Diameter
Internal Switch(s)
Mounting Type
Number of Positions
Operating Temperature
Shielding
Signal Lines
Termination
Termination Style
View Similar Products (0)

MDPC2A Description

Short technical summary and product information.

The MDPC2A from Conxall/Switchcraft is a mono phone jack connector designed for through hole PCB mounting. It features a female gender with 2 conductors and 3 contacts, supporting mono audio signal transmission. The mating diameter is 2.46mm (0.097 inches) with an actual diameter of 2.57mm (0.101 inches).



This connector includes a single internal switch and is unshielded, making it suitable for basic audio applications where shielding is not required. Termination is via solder terminals, ensuring reliable connections in PCB assembly. The operating temperature range spans from -20°C to 65°C, accommodating a variety of environments.



Compliance with RoHS3 and REACH is indicated, though unverified. The connector is intended for use in audio equipment, musical instruments, and consumer electronics where a standard mono phone jack interface is needed.

MDPC2A Quick Information

Product Type: Phone Jack
Canonical Name: MDPC2A Mono Phone Jack, Female, 2.46mm ID, Through Hole, Solder
Subcategory: Mono Audio Connector

MDPC2A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDPC2A Estimated Pricing

Qty Low High
1+ $4.07 $4.07
10+ $3.76 $3.76
20+ $3.71 $3.71
50+ $3.42 $3.42
100+ $3.18 $3.18
200+ $3.11 $3.11
500+ $2.95 $2.95
1,000+ $2.85 $2.85
2,000+ $2.68 $2.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDPC2A Features

  • Mono phone jack with 2.46mm mating diameter.
  • Through hole mounting with solder termination.
  • Single internal switch for signal control.
  • Unshielded body for basic audio circuits.
  • Operating temperature range -20°C to 65°C.

MDPC2A Applications

  • Ideal for mono audio signal connections in PCBs.
  • Used in musical instruments and audio gear.
  • Suitable for consumer electronics with audio jacks.
  • Common in test equipment for audio interfaces.

MDPC2A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions and contacts does the MDPC2A have?

It has 2 conductors and 3 contacts.

What is the mounting type for the MDPC2A?

Through hole.

Is the MDPC2A mono or stereo?

Mono.

What is the mating diameter of the MDPC2A?

2.46mm (0.097 inches).

Does the MDPC2A have an internal switch?

Yes, it has a single switch.

Is the MDPC2A shielded?

No, it is unshielded.

What is the operating temperature range of the MDPC2A?

-20°C to 65°C.
