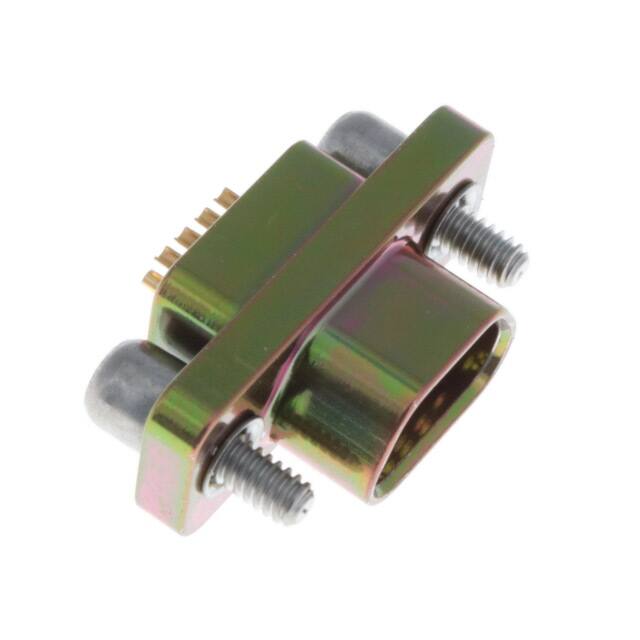

MDM-9SSL MDM-9SSL is a 9-position Micro-D receptacle with female sockets, solder cup termination, and panel mount. It features gold-plated contacts, a shielded metal shell, and is rated for 3A.
Mfr Part #:

MDM-9SSL

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
MDM-9SSL is a 9-position Micro-D receptacle with female sockets, solder cup termination, and panel mount. It features gold-plated contacts, a shielded metal shell, and is rated for 3A.
✓ Total Stock: 1 pcs
$ Price Range: $151.68 - $199.78

MDM-9SSL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDM-9SSL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Material
Contact Resistance
Contact Type
Current Rating (Amps)
Durability
Features
Flange Feature
Insulation Resistance
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

MDM-9SSL Description

Short technical summary and product information.

The MDM-9SSL is a 9-position Micro-D receptacle from ITT Cannon's MICRO series. It features female socket contacts terminated via solder cups, designed for panel mount applications with cable-side male jackscrews (2-56) for secure mating. The connector is shielded and comes with a yellow chromate plated cadmium aluminum shell for durability and EMI protection.



Electrically, the MDM-9SSL is rated for 3A continuous current per contact, with a maximum contact resistance of 8 mOhm. It can withstand 600 VAC at sea level and 150 VAC at 70,000 ft altitude, with a minimum insulation resistance of 5000 MOhm. The contact material is gold-plated copper alloy for reliable signal transmission.



Environmentally, the connector operates over a temperature range of -55°C to +125°C, withstands 50 G shock, 20 G vibration, and passes 48-hour salt spray testing. It is rated for 500 mating cycles, making it suitable for harsh environments in aerospace, defense, and industrial applications. The solder cup termination accepts up to #26 AWG wire.

MDM-9SSL Quick Information

Product Type: Micro-D Connector
Series: MICRO
Canonical Name: Micro-D Receptacle, 9 Position, Female Sockets, Solder Cup, Panel Mount, Shielded
Subcategory: Micro-D Connectors

MDM-9SSL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDM-9SSL Estimated Pricing

Qty Low High
1+ $199.78 $199.78
10+ $169.82 $169.82
25+ $159.22 $159.22
50+ $151.68 $151.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDM-9SSL Features

  • 9-position Micro-D receptacle with female sockets.
  • Solder cup termination for harness wiring.
  • Panel mount design with jackscrew coupling.
  • Shielded shell for EMI protection.
  • Rated for 3A continuous current per contact.

MDM-9SSL Applications

  • Suitable for military and aerospace interconnect.
  • Used in ruggedized data communication links.
  • Ideal for harsh environment cable assemblies.
  • Common in industrial control systems.
  • Applied in medical equipment requiring high reliability.

MDM-9SSL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions of the MDM-9SSL?

9 positions.

What is the mounting type of this connector?

Panel mount.

What is the current rating of the MDM-9SSL?

3 A.

What is the contact finish?

Gold.

What is the termination style?

Solder cup.

What is the dielectric withstanding voltage?

600 VAC at sea level and 150 VAC at 70,000 ft altitude.

What is the operating temperature range?

-55°C to +125°C.
