| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

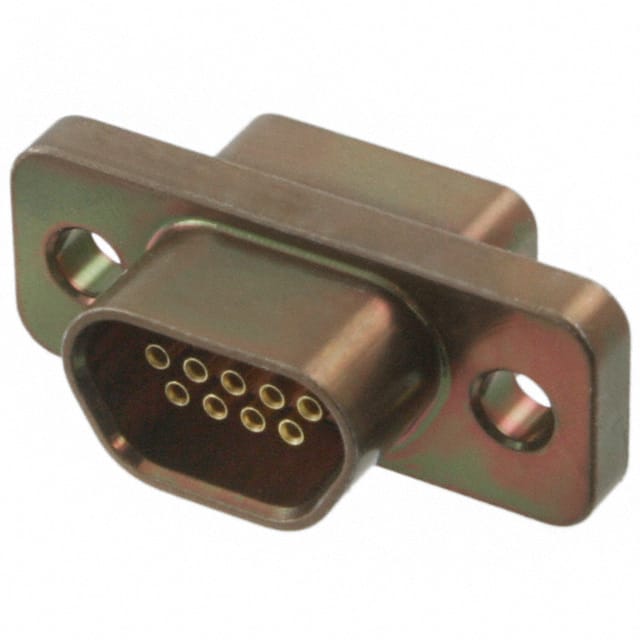

The MDM-9SSB is a Micro-D receptacle connector from ITT Cannon, featuring 9 positions arranged in 2 rows. It is a female socket connector designed for signal applications. The connector utilizes a D-Type, Micro-D shell style with a 0.050 inch pitch and 0.043 inch row spacing.
The mounting type is panel mount with a housing/shell unthreaded flange feature. Termination is via solder cup, making it suitable for wire termination. The connector is shielded for EMI protection. The contact finish is gold, and the shell is made of aluminum with a yellow chromate plated cadmium finish.
Rated for a current of 3 A, this connector is suitable for signal-level interconnect applications in harsh environments. The shell material and finish provide corrosion resistance and durability. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $183.77 | $183.77 |
| 10+ | $156.23 | $156.23 |
| 25+ | $150.08 | $150.08 |
| 50+ | $145.07 | $145.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 9 positions arranged in 2 rows.
The pitch is 0.050 inches.
The current rating is 3 A.
The connector is designed for panel mount.
Termination is via solder cup.
The contacts have a gold finish.
Yes, the connector features shielding.
