| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

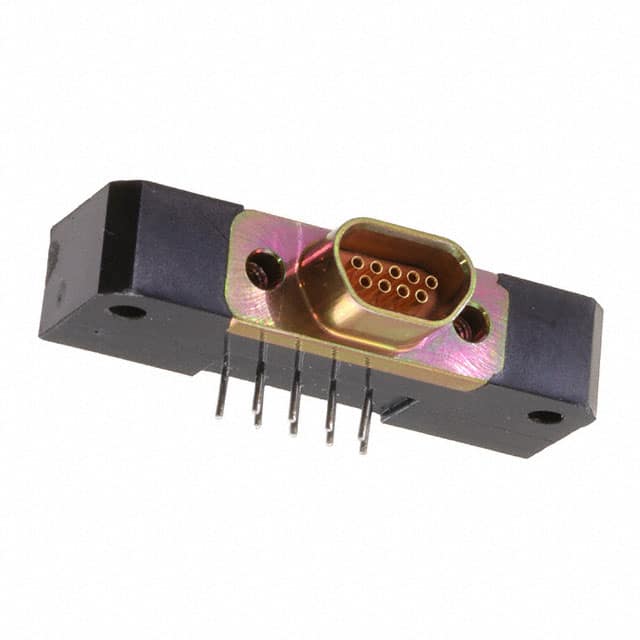

The ITT Cannon MDM-9SBR is a Micro-D receptacle connector designed for dense signal interconnect applications. It features 9 female socket contacts arranged in 2 rows with a 0.050 inch pitch and 0.100 inch row spacing.
The connector utilizes gold-plated contacts to ensure reliable signal transfer and corrosion resistance. The shell is constructed from aluminum with a yellow chromate plated cadmium finish, and the assembly is shielded for EMI protection. It supports panel mount and through-hole right-angle termination with solder connections.
Rated for 3 Amps continuous current, this connector is suitable for aerospace, defense, and industrial applications where high-density and ruggedness are required. The unthreaded flange facilitates simple panel mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $230.45 | $230.45 |
| 10+ | $195.90 | $195.90 |
| 25+ | $183.66 | $183.66 |
| 50+ | $174.61 | $174.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
0.050 inch pitch with 0.100 inch row spacing.
3 Amperes.
Panel mount, through hole, right angle.
Gold.
Yes, it is shielded.
Aluminum with yellow chromate plated cadmium finish.
