| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

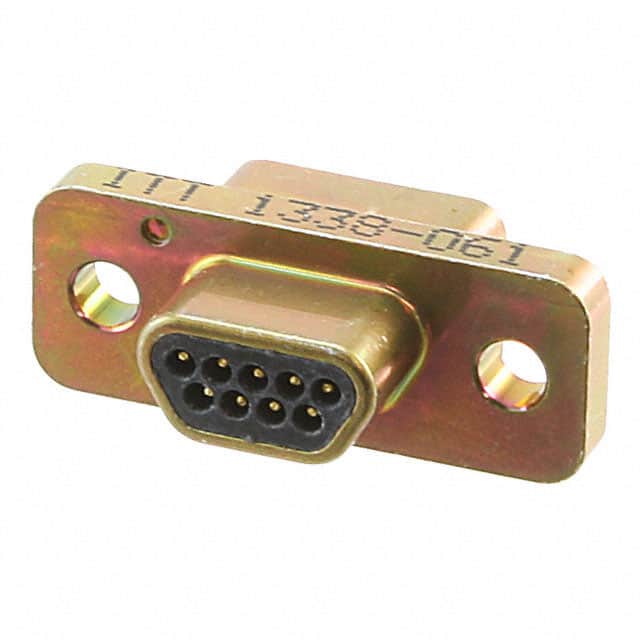

This ITT Cannon MDM-9PSB is a Micro-D connector assembly designed for panel mounting. It features 9 positions and male pins with a gold contact finish. The connector style is D-Type, Micro-D, with a shell made of aluminum and plated with yellow chromate cadmium. It has a current rating of 3A and is shielded.
The termination style is solder cup, and it has 2 rows. The pitch is specified as 0.050 inch x 0.043 inch row to row. The flange feature is housing/shell (unthreaded).
This component is RoHS3 compliant and has an MSL rating of 1. It is suitable for applications requiring a reliable and compact connector solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ITT Cannon MDM-9PSB connector has 9 positions.
The current rating for the MDM-9PSB connector is 3A.
The MDM-9PSB connector uses solder cup termination.
The ITT Cannon MDM-9PSB has a panel mount type.
The MDM-9PSB connector is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the MDM-9PSB is 1 Unlimited.
