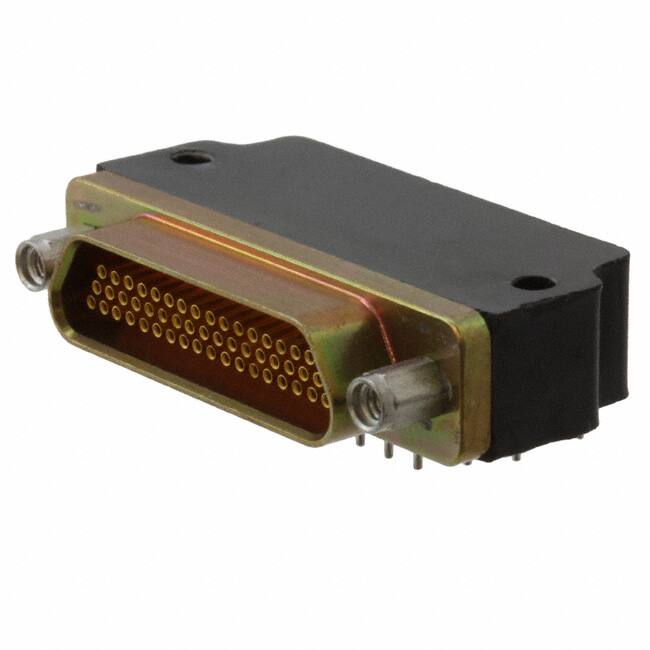

MDM-51SCBRP The MDM-51SCBRP is a 51-position Micro-D receptacle from ITT Cannon with female sockets. It features right angle solder termination, panel mount, and a shielded shell with gold contacts.
Mfr Part #:

MDM-51SCBRP

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
The MDM-51SCBRP is a 51-position Micro-D receptacle from ITT Cannon with female sockets. It features right angle solder termination, panel mount, and a shielded shell with gold contacts.
✓ Total Stock: 12 pcs
$ Price Range: $553.04

MDM-51SCBRP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDM-51SCBRP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Features
Flange Feature
Lead Style
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

MDM-51SCBRP Description

Short technical summary and product information.

The MDM-51SCBRP is a 51-position Micro-D receptacle from ITT Cannon, designed for high-density signal interconnection in demanding environments. It features a 5-row layout with a 0.050 inch pitch and 0.100 inch row spacing, providing compact signal routing. The connector uses right angle solder termination for through-hole mounting on a PCB, and includes a panel mount flange with female screwlock (2-56) for secure mating. The shell is aluminum with yellow chromate cadmium plating, offering durability and shielding. Contacts are gold-plated signal type, rated for 3A continuous current. The connector is shielded to reduce electromagnetic interference.

MDM-51SCBRP Quick Information

Product Type: Micro-D Connector
Series: Micro-D
Canonical Name: 51 Position Micro-D Receptacle, Female Sockets, Right Angle Solder, Panel Mount
Subcategory: D-Sub Connector Assemblies

MDM-51SCBRP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDM-51SCBRP Estimated Pricing

Qty Low High
1+ $553.04 $553.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDM-51SCBRP Features

  • 51-position micro-D receptacle with 5 rows.
  • Right angle solder termination for space-saving designs.
  • Panel mount with female screwlock flange (2-56).
  • Shielded aluminum shell with yellow chromate cadmium plating.
  • Gold-plated signal contacts rated for 3A.

MDM-51SCBRP Applications

  • Used in aerospace and defense interconnection systems.
  • Ideal for high-density signal connections in harsh environments.
  • Suitable for industrial control and instrumentation equipment.
  • Common in military and ruggedized electronic assemblies.

MDM-51SCBRP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

The connector has 51 positions.

What is the pitch of the connector?

The connector has a 0.050 inch pitch with 0.100 inch row spacing.

What is the current rating?

The current rating is 3A.

What is the mounting type?

The mounting type is Panel Mount, Through Hole, Right Angle.

What is the termination style?

The termination style is Solder.

What is the contact finish?

The contact finish is Gold.

Is this connector shielded?

Yes, the connector is shielded.
