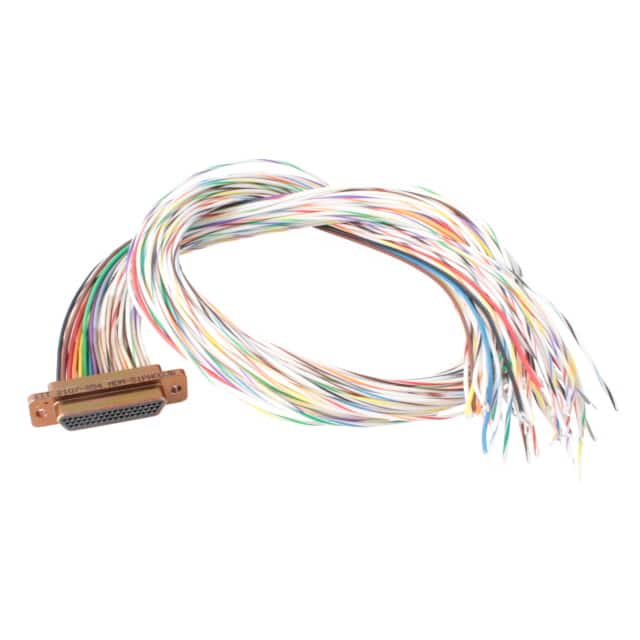

MDM-51PH003B MDM-51PH003B is a Micro-D cable assembly from ITT Cannon featuring 51 pin male contacts, 457.2mm (1.50 ft) wire leads, and a metal shell with yellow chromate finish.
Mfr Part #:

MDM-51PH003B

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
MDM-51PH003B is a Micro-D cable assembly from ITT Cannon featuring 51 pin male contacts, 457.2mm (1.50 ft) wire leads, and a metal shell with yellow chromate finish.
✓ Total Stock: 2 pcs
$ Price Range: $285.81 - $317.86

MDM-51PH003B Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request 9324-056 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDM-51PH003B Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
1st Connector
2nd Connector
Color
Contact Finish
Contact Material
Contact Termination Type
Durability
Failure Rate
Gender
Insulator Material
Length
Mounting Hole Diameter
Number of Positions
Operating Temperature Range
Shell Finish
Shell Material
Type
Wire Gauge
View Similar Products (0)

MDM-51PH003B Description

Short technical summary and product information.

The MDM-51PH003B is a Micro-D cable assembly manufactured by ITT Cannon, part of the Micro D Metal Shell series. It features a 51-position D-Type Micro-D connector with male pins terminated to 26 AWG individual wire leads with a minimum length of 18 inches (457.2 mm total). The contacts are gold plated copper alloy, crimp terminated, providing a maximum contact resistance of 8 milliohms and a current rating of 3 A. The shell is aluminum with a yellow chromate/cadmium over nickel finish, and the insulator is liquid crystalline polymer (LCP). The connector uses friction coupling and is rated for 500 mating cycles.



Electrically, the assembly can withstand 600 VAC at sea level and 150 VAC at 70,000 ft altitude, with a minimum insulation resistance of 5000 megohms. Operating temperature range is -55°C to +125°C. It is designed to withstand 50 G shock and 20 G vibration, making it suitable for harsh environments. The assembly is RoHS3 compliant (unverified), MSL 1, and REACH unaffected.



This cable assembly is ideal for military, aerospace, and industrial applications requiring high reliability in a compact, rugged interconnect. The mounting hole diameter is 0.092 inches for panel mounting.

MDM-51PH003B Quick Information

Product Type: D-Sub Cable Assembly
Series: Micro D Metal Shell
Canonical Name: D-Sub Cable Assembly, 51-Pin Micro-D Male to Individual Wire Leads, 457.2mm
Subcategory: D-Sub Cable Assemblies

MDM-51PH003B Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MDM-51PH003B Estimated Pricing

Qty Low High
1+ $317.86 $317.86
10+ $285.81 $285.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDM-51PH003B Features

  • 51-position Micro-D male connector with wire leads.
  • Gold plated copper alloy contacts for low resistance.
  • Rugged aluminum shell with yellow chromate finish.
  • Rated for 3 A current and 500 mating cycles.
  • Operating temperature range -55°C to +125°C.

MDM-51PH003B Applications

  • Ideal for military and aerospace interconnect systems.
  • Used in harsh environment industrial applications.
  • Suitable for high-reliability data transmission.
  • Common in avionics and ground support equipment.

MDM-51PH003B FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-55°C to +125°C

Is this part RoHS compliant?

RoHS3 Compliant (unverified)

What is the current rating?

3 A maximum

What is the cable length?

457.2 mm (1.50 ft)

What is the contact finish?

Gold

What is the dielectric withstanding voltage?

600 VAC at sea level, 150 VAC at 70,000 ft

How many mating cycles is it rated for?

500 cycles
