| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Features | |
| Flange Feature | |
| Hardware | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

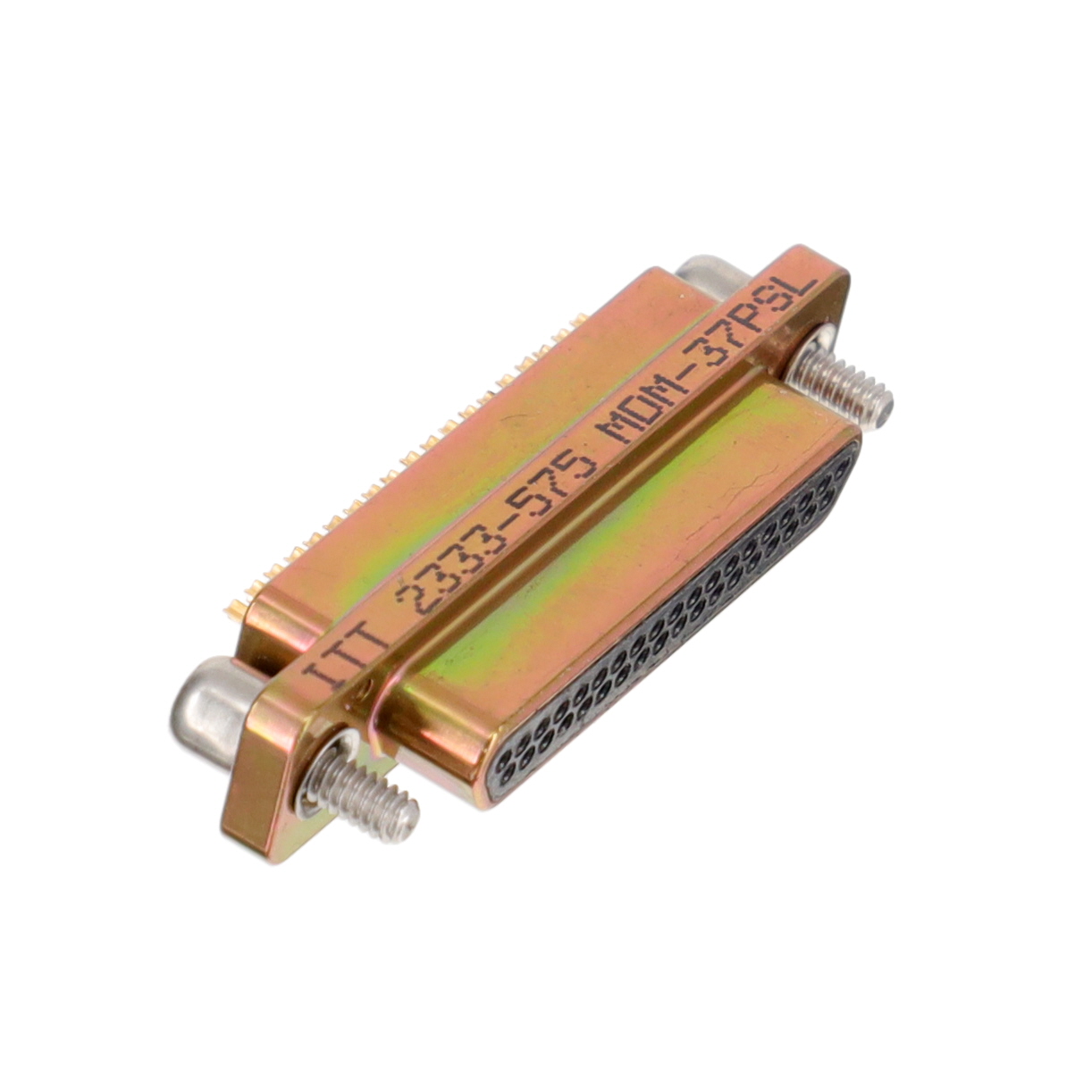

The ITT Cannon MDM-37PSL is a 37-position Micro-D plug connector designed for reliable signal transmission in demanding environments. This connector features male pins with gold-plated copper alloy contacts, ensuring low contact resistance of 8 milliohms maximum and excellent corrosion resistance. The plug is rated for a maximum current of 3A per contact and can withstand dielectric withstanding voltages of 600 VAC at sea level and 150 VAC at 70,000 feet altitude.
The connector is housed in a rugged aluminum shell with a yellow chromate plated cadmium finish, providing durability and shielding against electromagnetic interference. It utilizes a jackscrew coupling mechanism with low-profile male jackscrews (2-56 thread) for secure mating. The solder cup termination accepts up to 26 AWG wire, making it suitable for cable assembly applications.
Designed for panel mounting, this connector operates over a wide temperature range of -55°C to +125°C. It is rated for 500 mating cycles minimum and can withstand 50 G's of physical shock and 20 G's of vibration, making it ideal for military, aerospace, and industrial applications where reliability is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $285.91 | $285.91 |
| 10+ | $243.07 | $243.07 |
| 25+ | $227.87 | $227.87 |
| 100+ | $700.48 | $700.48 |
| 200+ | $686.47 | $686.47 |
| 500+ | $672.74 | $672.74 |
| 1,000+ | $659.29 | $659.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 3A per contact.
The operating temperature range is -55°C to +125°C.
The connector is rated for a minimum of 500 mating cycles.
It uses solder cup termination, accepting up to 26 AWG wire.
Yes, it features a shielded aluminum shell with yellow chromate plated cadmium finish.
