| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

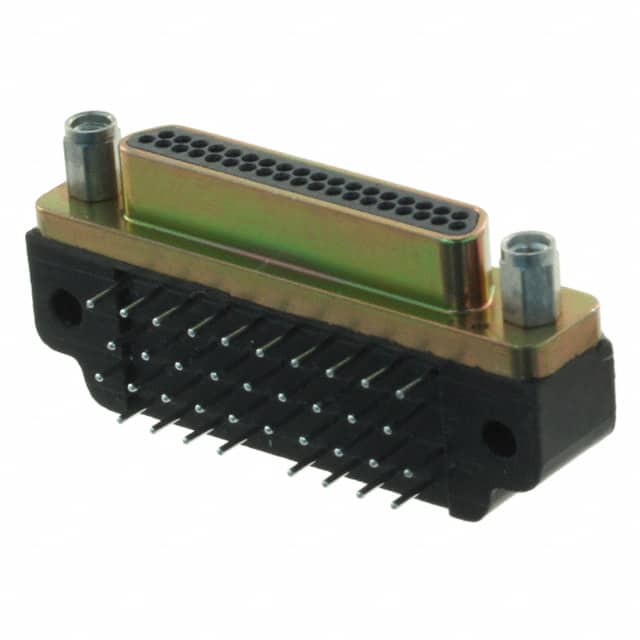

The MDM-37PCBRP is a Micro-D plug connector from ITT Cannon, part of the microminiature D-Sub family. It features 37 male pin contacts arranged in 4 rows, with a 0.050 inch pitch and 0.100 inch row spacing. The connector is designed for panel mount with through hole, right angle solder termination, making it suitable for applications where space is constrained and a low-profile connection is required.
Electrical specifications include a current rating of 3 amps per contact. The contacts are gold-plated for reliable signal transmission. The shell is made of aluminum with a yellow chromate plated cadmium finish, providing corrosion resistance and shielding. The connector is shielded to reduce electromagnetic interference.
The mounting flange includes female screwlocks (2-56 thread) on the mating side for secure attachment. The connector is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited).
This connector is typically used in aerospace, defense, and industrial applications where high reliability and miniaturization are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $481.99 | $481.99 |
| 10+ | $417.64 | $417.64 |
| 25+ | $409.59 | $409.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 37 positions arranged in 4 rows.
The current rating is 3 amps per contact.
The mounting type is panel mount with through hole, right angle solder termination.
The contacts have a gold finish.
Yes, the connector is shielded.
The shell is aluminum with a yellow chromate plated cadmium finish.
The pitch is 0.050 inch and row-to-row spacing is 0.100 inch.
