| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

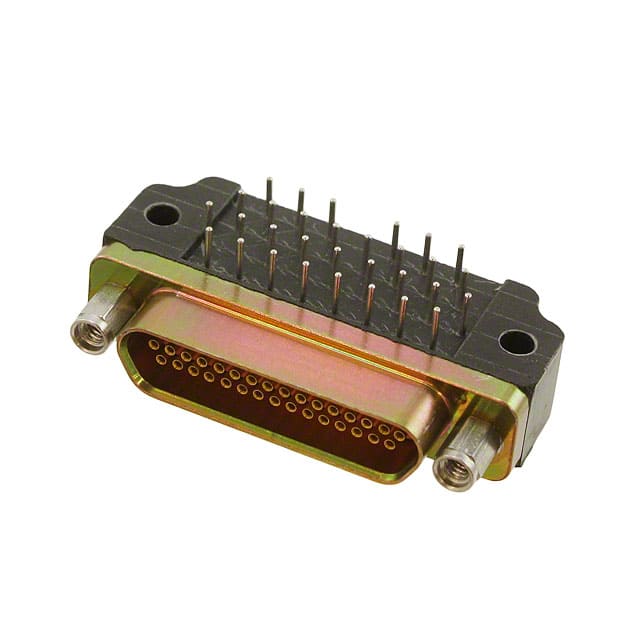

The MDM-31SCBRP is a 31-position Micro-D receptacle from ITT Cannon's MICRO series. It features female socket contacts with gold plating over copper alloy, providing reliable signal connections. The connector uses a right angle solder termination style with condensed right angle PCB terminations for space-constrained designs.
This receptacle is rated for 3 A maximum current per contact and has a maximum contact resistance of 8 mOhm. It offers a minimum insulation resistance of 5000 MOhm and can withstand 600 VAC at sea level or 150 VAC at 70,000 ft altitude. The connector is designed for panel mount installation with through hole, right angle mounting.
The shell is made of aluminum with a yellow chromate plated cadmium finish, and the connector includes a flange feature with mating side female screwlock (2-56) hardware. It is shielded for EMI protection. The operating temperature range is -55°C to +125°C, and it is rated for 500 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $408.18 | $408.18 |
| 10+ | $366.71 | $366.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MDM-31SCBRP has 31 positions arranged in 4 rows.
The current rating is 3 A per contact.
It is panel mount with through hole, right angle mounting.
The contacts have a gold finish over copper alloy.
The thermal shock range is -55°C to +125°C.
Yes, the connector features shielding.
It is rated for 500 mating and unmating cycles.
