| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

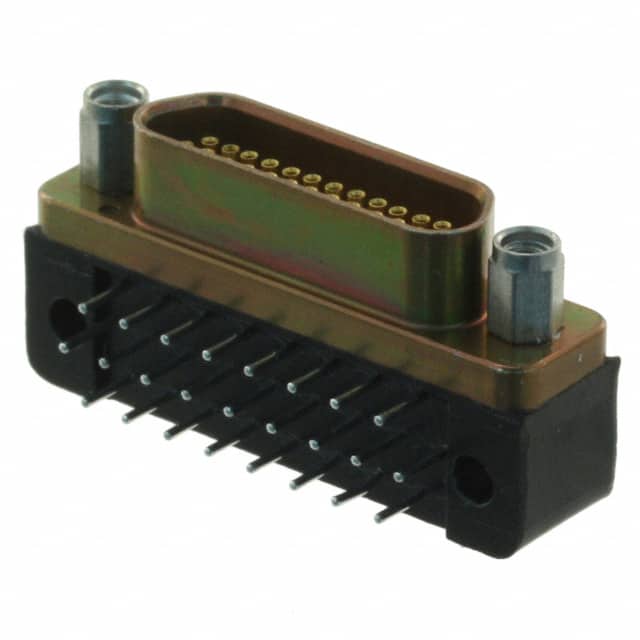

The MDM-25SCBRP is a Micro-D receptacle from ITT Cannon, featuring 25 female sockets arranged in 3 rows. It is designed for panel mount with a right-angle through-hole solder termination. The connector is shielded and features a flange with female screwlocks (2-56) for secure mating. The shell is made of aluminum with yellow chromate plated cadmium finish, and contacts are gold-plated for reliable conductivity. The current rating is 3A per contact. The contact pitch is 0.050 inch with 0.100 inch row spacing. This connector is suitable for applications requiring high-density, reliable signal connections in environments where EMI shielding is important.
| Qty | Low | High |
|---|---|---|
| 1+ | $443.84 | $443.84 |
| 10+ | $377.32 | $377.32 |
| 25+ | $359.63 | $359.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
The contact pitch is 0.050 inch with 0.100 inch row to row spacing.
3 A per contact.
Panel mount, through hole, right angle.
Receptacle, Female Sockets.
Aluminum, yellow chromate plated cadmium.
Yes, it is shielded.
