| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Primary Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

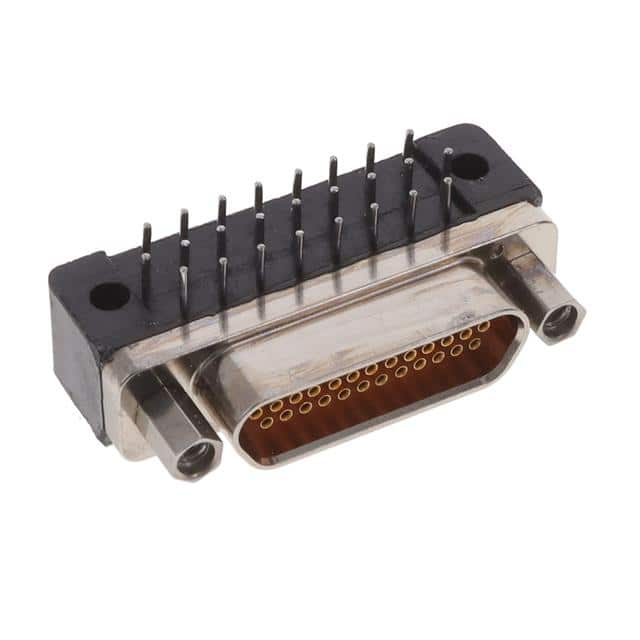

This ITT Cannon MDM-25SCBRM7-A174 is a D-Type, Micro-D connector assembly designed for signal applications. It offers 25 positions across two rows, with a contact rating of 3A. The connector features gold-plated contacts for reliable signal transmission and a durable aluminum alloy shell with a nickel-plated, electroless finish.
Mounting is achieved via a through-hole, right-angle configuration, making it suitable for PCB integration. The termination style is solder, and it includes a female screwlock feature for secure mating. The shell size and layout are specified as 0.050 Pitch x 0.043 Row to Row, with a backset spacing of 0.130 inches (3.30mm).
This connector assembly is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. It is designed for applications requiring robust and reliable signal connections in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MDM-25SCBRM7-A174 connector has 25 positions.
The current rating for this connector is 3A.
This connector supports through hole, right angle mounting.
The termination style is solder.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
