| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 2nd Connector | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Coupling | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Hardware | |
| Insulator Material | |
| Insulator Resistance | |
| Length | |
| Moisture Resistance | |
| Number of Positions | |
| Physical Shock | |
| Salt Spray | |
| Shell Finish | |
| Shell Material | |
| Termination Type | |
| Thermal Shock | |
| Type | |
| Vibration |

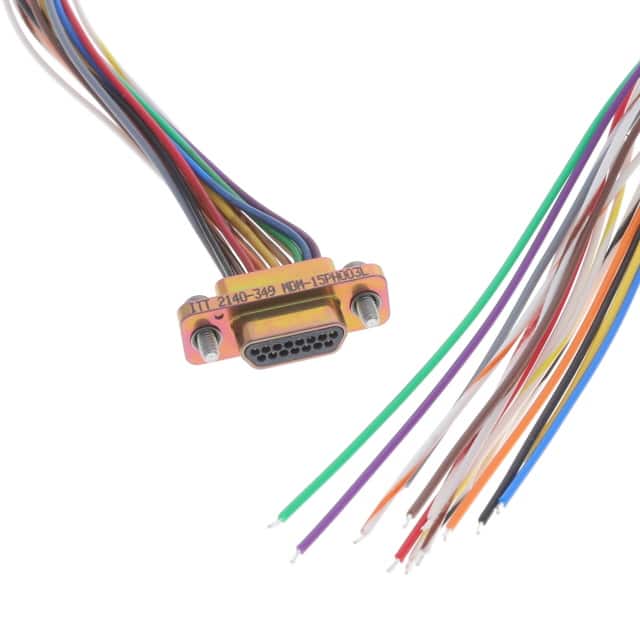

The ITT Cannon MDM-15PH003L is a D-Sub cable assembly designed for reliable connectivity. It features a 15-position Micro-D connector with a male pin gender, paired with individual wire leads for termination.
The cable assembly boasts a length of 457.20mm (1.50 feet) and is rated for a maximum current of 3A. The contacts are constructed from gold-plated copper alloy, ensuring good conductivity and resistance to corrosion. The shell is made of aluminum with a yellow chromate/cadmium over nickel finish for durability.
Environmental and mechanical specifications include a thermal shock range of -55°/+125°C, resistance to physical shock up to 50 G's, and vibration resistance of 20 G's. The insulator material is liquid crystalline polymer or Diallyl phthalate, depending on the contact arrangement. This assembly is designed for 500 cycles of mating and unmating.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The hardware includes a low-profile jackscrew for secure coupling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contacts are made of gold-plated copper alloy.
The current rating is a maximum of 3A.
The cable length is 457.20mm (1.50 feet).
The thermal shock range is -55°C to +125°C.
It is rated for 500 cycles of mating and unmating.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
