| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

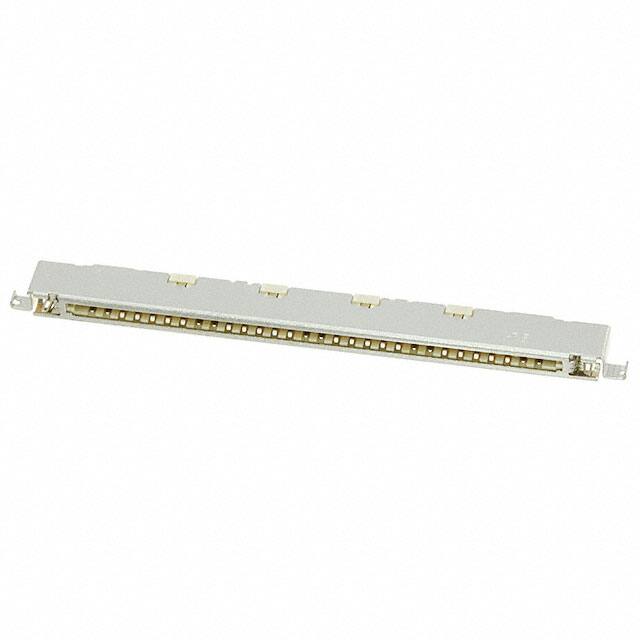

The Hirose MDF76GW-30S-1H(55) is a 30 position receptacle connector designed for board to cable/wire applications. It features a single row of center strip contacts with a 1.00mm pitch, making it suitable for compact designs.
This connector uses surface mount right angle termination with solder retention for reliable attachment. The contacts are gold plated with a thickness of 3.90 microinches, and the insulation is beige with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 85°C.
The push-pull fastening type allows for easy mating and unmating. The voltage rating is 200VAC, while the current rating varies by wire gauge. This part is RoHS3 compliant and has an MSL of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.66 | $2.66 |
| 2,500+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 30 positions in a single row.
The pitch is 1.00mm.
The voltage rating is 200VAC.
It is surface mount, right angle.
The operating temperature range is -40°C to 85°C.
The contact finish is gold with a thickness of 3.90 microinches.
