| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

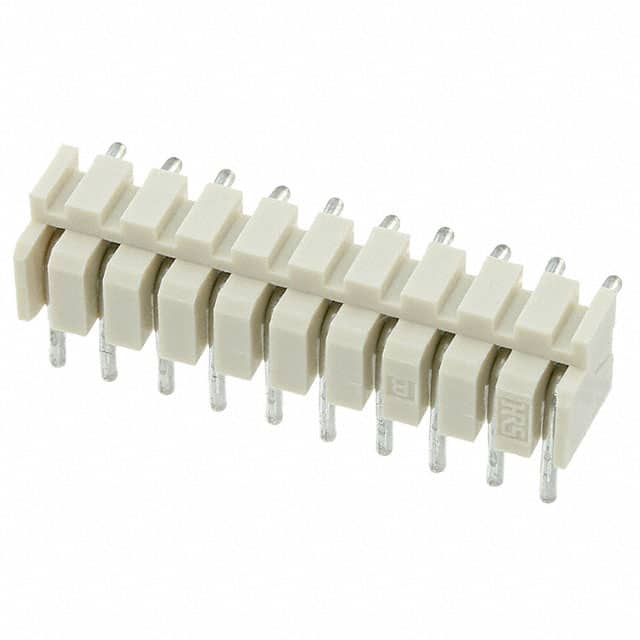

The MDF14A-10P-2.5DS(05) is a 10-position, 1-row header from Hirose Electric designed for board-to-board connections. It has a 2.5mm pitch and a right angle through hole mounting style with kinked pin solder termination. The unshrouded header uses a push-pull fastening mechanism and is made with brass contacts that have a tin finish (118.1µin thickness). The insulation is natural polyamide (nylon) with a UL94 V-0 flammability rating. Electrical ratings include 5A current and 250V voltage, with an operating temperature range of -30°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.65 | $0.65 |
| 10+ | $0.62 | $0.62 |
| 25+ | $0.60 | $0.60 |
| 100+ | $0.59 | $0.59 |
| 2,500+ | $0.53 | $0.53 |
| 5,000+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in a single row.
2.50mm (0.098 inches).
5A.
250V.
Through hole, right angle.
-30°C to 85°C.
Tin with 118.1µin (3.00µm) thickness.
