| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

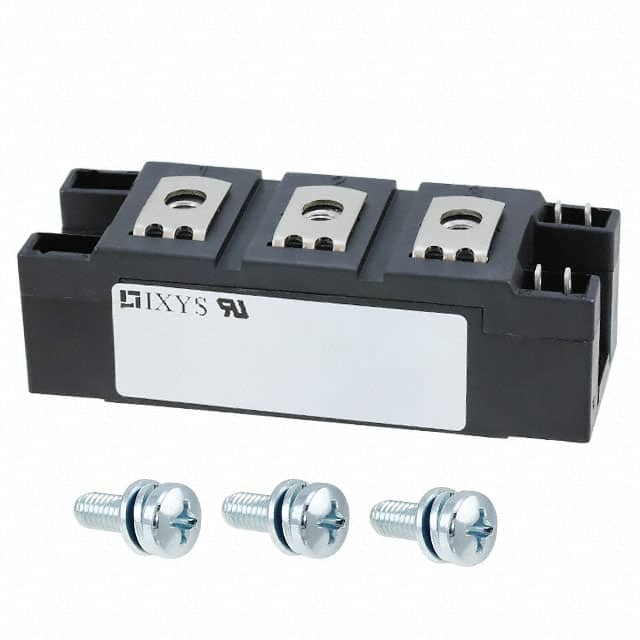

The IXYS MDD172-12N1 is a high-power standard recovery diode module. It features a 1 pair series connection configuration. The module is rated for a repetitive peak reverse voltage of 1200V and an average forward current of 172A per diode. The forward voltage drop is typically 1.15V at 300A. Maximum reverse leakage current is 20mA at 1200V. The diode uses standard technology with a recovery time greater than 500ns. The module is packaged in a Y4-M6 case designed for chassis mounting. Operating temperature range is -40°C to 150°C. Compliance data suggests RoHS3 compliance and REACH unaffected, with MSL 1 unlimited, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $63.66 | $63.66 |
| 12+ | $49.84 | $49.84 |
| 102+ | $47.35 | $47.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The repetitive peak reverse voltage is 1200V.
The average forward current is 172A per diode.
The forward voltage is 1.15V maximum at 300A.
It is packaged in a Y4-M6 case for chassis mount.
It is a standard recovery diode with recovery time greater than 500ns.
The operating temperature range is -40°C to 150°C.
According to available data, it is RoHS3 compliant, but this is low confidence and unverified.
