| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Current - Output 2 | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Output 2 | |
| Width |

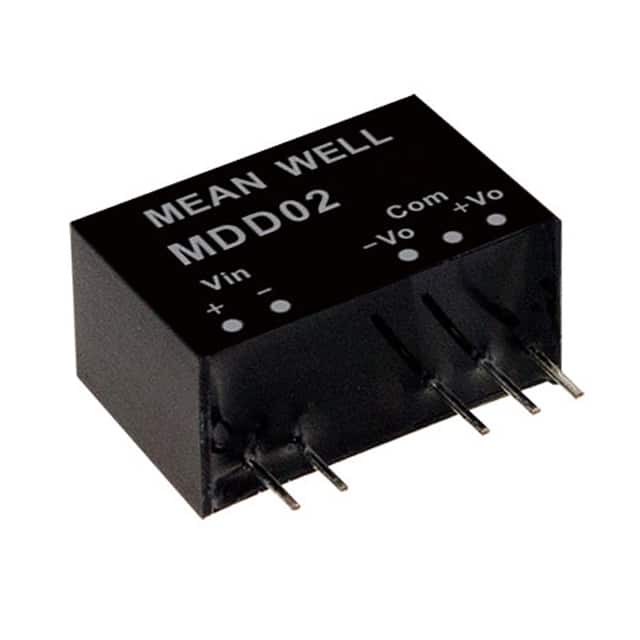

The MDD02N-12 is an isolated DC-DC converter module from Mean Well USA, offering a regulated ±12V dual output. With a total output power of 2W, it delivers 83mA on each rail. The module boasts an efficiency of 82% typical, making it suitable for power-sensitive designs.
Designed for medical applications, the converter includes short circuit protection (SCP) for enhanced reliability. It operates over a wide temperature range of -40°C to 85°C, accommodating harsh environments. The through-hole mounting and 7-SIP package (19.5mm x 9.8mm x 12.5mm) ensure easy integration into PCB designs.
The converter is available in a 7-SIP module with 5 leads, and is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). These features make it a reliable choice for medical equipment, instrumentation, and industrial control systems requiring isolated dual power supplies.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $4.85 | $4.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7-SIP Module, 5 Leads (Supplier Device Package: 7-SIP).
-40°C to 85°C.
Yes, but compliance is unverified. The database lists RoHS3 Compliant, REACH Unaffected, and MSL 1 (Unlimited).
82% typical efficiency.
Dual outputs: +12V at 83mA and -12V at 83mA, total power 2W.
Yes, it includes short circuit protection (SCP).
Through-hole mounting.
