Mfr Part #:

MDBT42Q-PAT2

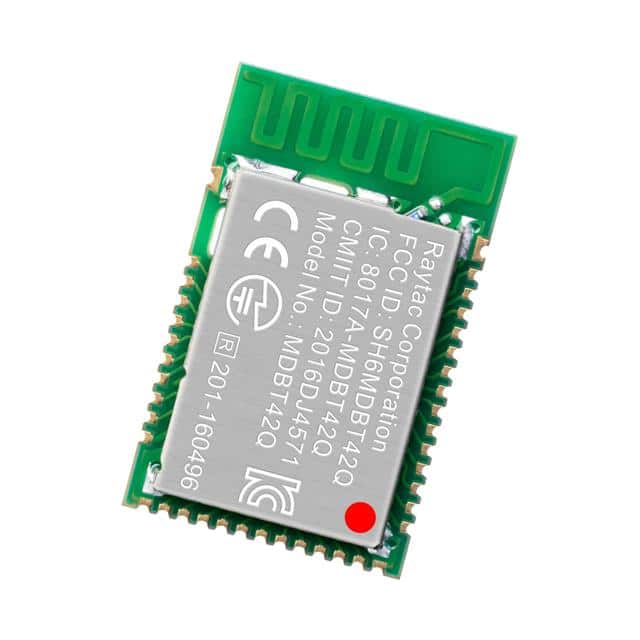

Name: MDBT42Q-PAT2
Brand: Raytac
SKU: MDBT42Q-PAT2

Mfr Name: Raytac

Description:

Raytac AT CMD PCB Antenna Module

Stock on Request

MDBT42Q-PAT2 Description

Short technical summary and product information.

Raytac AT CMD PCB Antenna Module

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Transceiver Modules and Modems
Manufacturer Name	Raytac
Antenna Type	PCB Trace
Current	3.5mA ~ 11.2mA
Data Rate	2Mbps
Frequency	2.36GHz ~ 2.5GHz
Memory Size	192kB Flash, 24kB RAM
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Power	4dBm
Protocol	Bluetooth v5.2
RF Family	Bluetooth
Sensitivity	-96dBm
Serial Interfaces	GPIO, UART
Utilized IC	nRF52810
Voltage	1.7V ~ 3.6V
