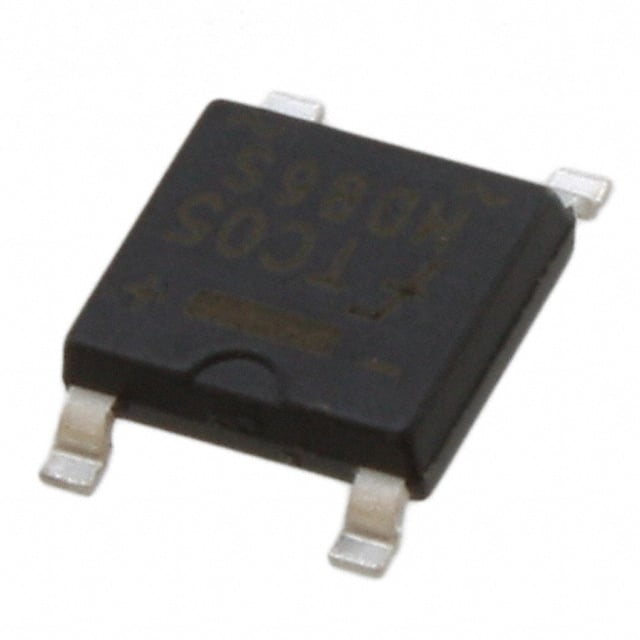

MDB6S MDB6S is a single phase bridge rectifier from ON Semiconductor. It is rated for 600V reverse voltage and 1A average current in a surface mount 4-MicroDIP package.
Mfr Part #:

MDB6S

Available from 5 distributors
Mfr Name: On Semiconductor
On Semiconductor
MDB6S is a single phase bridge rectifier from ON Semiconductor. It is rated for 600V reverse voltage and 1A average current in a surface mount 4-MicroDIP package.
✓ Total Stock: 32,353 pcs
$ Price Range: $0.20 - $0.79

MDB6S Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MDB6S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Military Grade
Mounting Type
Operating Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

MDB6S Description

Short technical summary and product information.

The MDB6S from ON Semiconductor is a single-phase bridge rectifier designed for general-purpose AC-to-DC conversion. It features a repetitive peak reverse voltage of 600V and an average forward current of 1A, making it suitable for a variety of low-power applications. The device can handle a non-repetitive peak forward surge current of 10A at 600V.



This rectifier uses standard technology and is housed in a surface-mount 4-MicroDIP package with gull wing leads. It operates over a wide temperature range of -55°C to 150°C, allowing use in demanding environments. The compact 4-SMD, Gull Wing package enables efficient board assembly and space savings.

MDB6S Quick Information

Product Type: Bridge Rectifier
Canonical Name: Bridge Rectifier, Single Phase, 600V, 1A, Surface Mount, 4-MicroDIP
Subcategory: Bridge Rectifiers

MDB6S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MDB6S Estimated Pricing

Qty Low High
1+ $0.79 $0.79
10+ $0.49 $0.49
100+ $0.32 $0.32
500+ $0.24 $0.24
1,000+ $0.20 $0.20
5,000+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

MDB6S Features

  • Single phase bridge rectifier configuration.
  • Rated for 600V repetitive peak reverse voltage.
  • 1A average forward current capability.
  • 10A non-repetitive surge current at 600V.
  • Surface mount 4-MicroDIP package with gull wing leads.

MDB6S Applications

  • Used in AC-to-DC power supply circuits.
  • Ideal for low-power rectification in consumer electronics.
  • Suitable for LED lighting driver circuits.
  • Applied in industrial control systems.

MDB6S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive reverse voltage of the MDB6S?

600V.

What is the average forward current of the MDB6S?

1A.

What is the non-repetitive peak forward surge current?

10A at 600V.

What package does the MDB6S come in?

4-SMD, Gull Wing (4-MicroDIP/SMD).

What is the operating temperature range?

-55°C to 150°C.

How is the diode configured?

Single phase bridge rectifier.

What is the mounting type?

Surface mount.
