MD51V65165E-50TAZ0AR The ROHM Semiconductor MD51V65165E-50TAZ0AR is a 64Mbit DRAM memory component. It features a 25 ns access time and operates from a 3V to 3.6V supply.
Mfr Part #:

MD51V65165E-50TAZ0AR

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor MD51V65165E-50TAZ0AR is a 64Mbit DRAM memory component. It features a 25 ns access time and operates from a 3V to 3.6V supply.
✓ Total Stock: 10 pcs
$ Price Range: $1.28

MD51V65165E-50TAZ0AR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MD51V65165E-50TAZ0AR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Output Type
Power Dissipation (Max)
Supplier Device Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

MD51V65165E-50TAZ0AR Description

Short technical summary and product information.

The ROHM Semiconductor MD51V65165E-50TAZ0AR is a 64Mbit DRAM memory integrated circuit. It is organized as 4M x 16 bits and utilizes a parallel interface. This component supports Fast Page Mode with EDO capabilities and read-modify-write operations.



Key electrical specifications include a 25 ns access time and a write cycle time of 84 ns. It operates from a single 3V to 3.6V power supply. The device supports various refresh modes, including RAS-only, CAS-before-RAS, and hidden refresh, requiring 4096 cycles per 64ms.

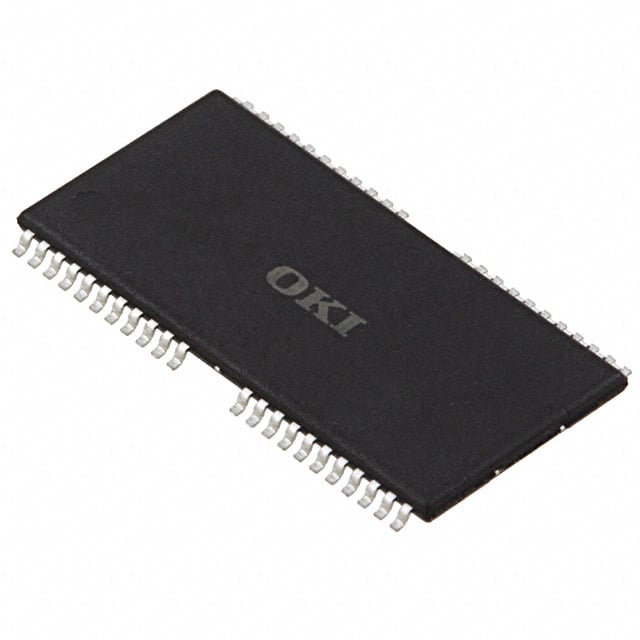

Packaged in a 50-pin TSOP (0.400", 10.16mm Width), it is designed for surface mounting. The operating temperature range is from 0°C to 70°C (TA). Input and output signals are LVTTL compatible, with outputs featuring a 3-state capability.

MD51V65165E-50TAZ0AR Quick Information

Product Type: DRAM Memory
Canonical Name: MD51V65165E-50TAZ0AR 64Mbit DRAM Memory
Subcategory: Memory

MD51V65165E-50TAZ0AR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MD51V65165E-50TAZ0AR Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

MD51V65165E-50TAZ0AR Features

  • 64Mbit DRAM memory capacity.
  • 25 ns maximum access time.
  • 3V to 3.6V operating voltage.
  • 50-TSOP surface mount package.
  • Fast Page Mode with EDO support.

MD51V65165E-50TAZ0AR Applications

  • Suitable for memory expansion.
  • Used in embedded systems.
  • Ideal for data storage.
  • Designed for high-speed applications.

MD51V65165E-50TAZ0AR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the memory size and organization of the MD51V65165E-50TAZ0AR?

64Mbit organized as 4M x 16.

What memory interface does the MD51V65165E-50TAZ0AR use?

Parallel.

What is the operating voltage range?

3V to 3.6V, with a 3.3V nominal voltage.

What is the access time?

25 ns.

What is the operating temperature range?

0°C to 70°C.

What package is available?

50-TSOP (0.400", 10.16mm width), 44 leads, surface mount.

What refresh modes does this DRAM support?

RAS-only, CAS-before-RAS, and hidden refresh, 4096 cycles/64ms.
