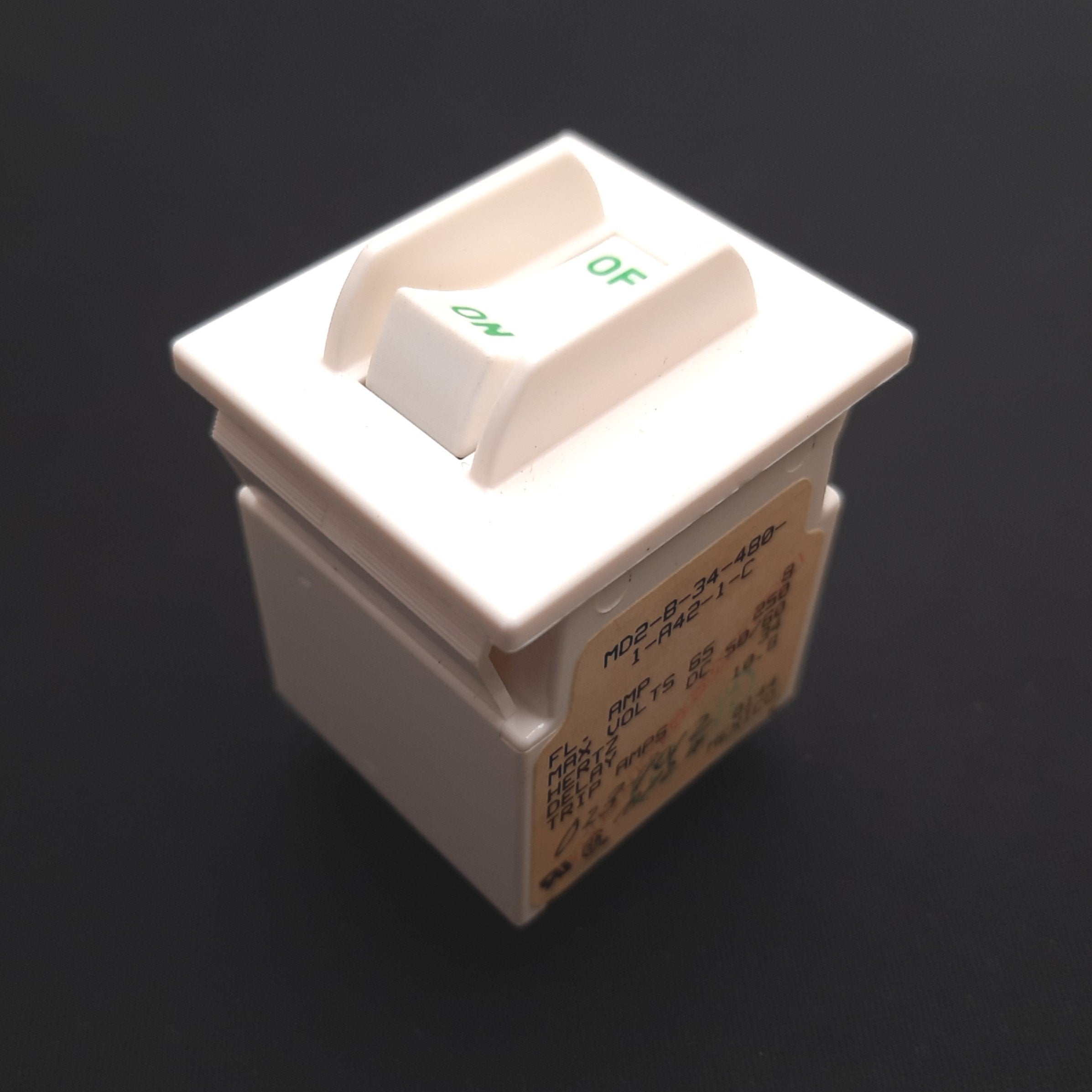

MD2-B-34-480-1-A42-1-C The Littelfuse Inc. MD2-B-34-480-1-A42-1-C is a 2-pole magnetic circuit breaker rated for 8A and 250V. It features a panel mount design and a rocker actuator.
Mfr Part #:

MD2-B-34-480-1-A42-1-C

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse Inc. MD2-B-34-480-1-A42-1-C is a 2-pole magnetic circuit breaker rated for 8A and 250V. It features a panel mount design and a rocker actuator.
Stock on Request

MD2-B-34-480-1-A42-1-C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

MD2-B-34-480-1-A42-1-C Description

Short technical summary and product information.

This Littelfuse Inc. MD2-B-34-480-1-A42-1-C is a 2-pole circuit breaker designed for panel mounting. It operates with a magnetic hydraulic delay mechanism and has a current rating of 8A with a voltage rating of 250V.



The breaker is approved by CCC, CSA, and UL1077, ensuring compliance with various safety standards. It features a rocker-style actuator and does not include illumination. The component is RoHS3 compliant and has an MSL of 1.



Its panel mount configuration makes it suitable for integration into control panels and electrical enclosures. The magnetic trip mechanism provides reliable overcurrent protection for various applications.

MD2-B-34-480-1-A42-1-C Quick Information

Product Type: Circuit Breaker
Canonical Name: Littelfuse Inc. MD2-B-34-480-1-A42-1-C 2-Pole Magnetic Circuit Breaker
Subcategory: Magnetic

MD2-B-34-480-1-A42-1-C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MD2-B-34-480-1-A42-1-C Features

  • 2-pole magnetic circuit breaker
  • 8A current rating
  • 250V voltage rating
  • Panel mount design
  • Rocker actuator

MD2-B-34-480-1-A42-1-C Applications

  • Industrial control panels
  • Electrical distribution systems
  • Machinery safety circuits
  • Power supply protection

MD2-B-34-480-1-A42-1-C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the MD2-B-34-480-1-A42-1-C circuit breaker?

The current rating is 8A.

What is the voltage rating for this circuit breaker?

The voltage rating is 250V.

How many poles does the MD2-B-34-480-1-A42-1-C have?

It has 2 poles.

What type of breaker mechanism does this unit use?

It uses a Magnetic (Hydraulic Delay) breaker type.

What is the mounting type for this circuit breaker?

The mounting type is Panel Mount.

Is this circuit breaker RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
