MD1213K6-G The Microchip Technology MD1213K6-G is a dual high-speed MOSFET driver designed for applications requiring high output current. It features 6ns rise and fall times with a 1000 pF load and 2A peak output currents.
Mfr Part #:

MD1213K6-G

Available from 4 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology MD1213K6-G is a dual high-speed MOSFET driver designed for applications requiring high output current. It features 6ns rise and fall times with a 1000 pF load and 2A peak output currents.
✓ Total Stock: 32,023 pcs
$ Price Range: $2.01

MD1213K6-G Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
30,845 pcs
On Request
30845 pcs On Request 1 On Request On Request 2020+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
176 pcs
On Request
176 pcs On Request 1 On Request On Request 19+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MD1213K6-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Gate Type
Input Type
Logic Voltage
Mounting Type
Number of Drivers
Operating Temperature
Rise
Supplier Device Package
Voltage
View Similar Products (0)

MD1213K6-G Description

Short technical summary and product information.

The MD1213K6-G from Microchip Technology is a high-speed dual-MOSFET driver. It is engineered to drive high-voltage P-channel and N-channel MOSFETs, making it suitable for applications such as medical ultrasound imaging, piezoelectric transducer drivers, and non-destructive testing. This device offers a 6 ns rise and fall time with a 1000 pF load and can deliver 2A peak output source and sink currents.



The input stage is CMOS compatible, operating from 1.8V to 5V logic, with an optimal input signal range of 1.8V to 3.3V. It features an adaptive threshold circuit for level translation and allows outputs to swing below ground. The total supply voltage range is 4.5V to 13V.

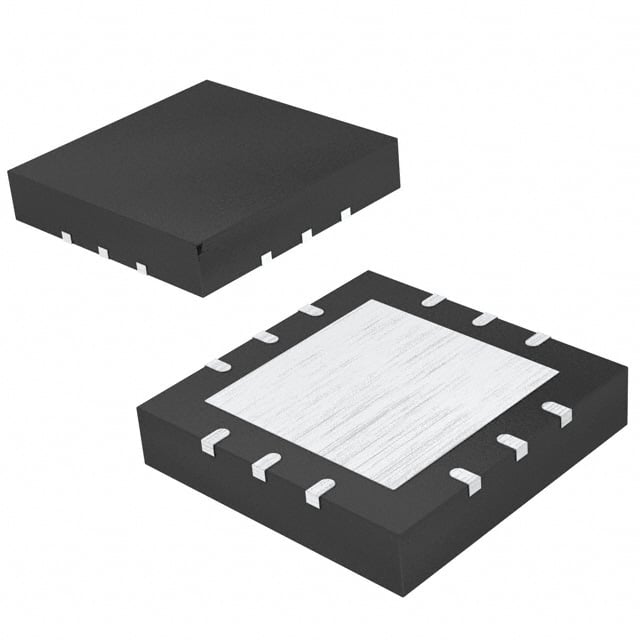

Packaged in a 12-lead QFN (4x4) with a surface mount type, the MD1213K6-G is designed for efficient integration into compact electronic systems. Its dual matched channels and independent control provide flexibility in driving configurations, including half-bridge setups.

MD1213K6-G Quick Information

Product Type: Gate Driver
Canonical Name: MD1213 Dual High-Speed MOSFET Driver
Subcategory: Gate Driver

MD1213K6-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MD1213K6-G Estimated Pricing

Qty Low High
1+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

MD1213K6-G Features

  • 6 ns rise and fall time with 1000 pF load.
  • 2A peak output source and sink currents.
  • 1.8V to 5V input CMOS compatible.
  • 4.5V to 13V total supply voltage.
  • Surface mount 12-QFN package.

MD1213K6-G Applications

  • Ideal for medical ultrasound imaging.
  • Used for piezoelectric transducer drivers.
  • Suitable for non-destructive testing.
  • Applicable for PIN diode driver circuits.
  • Designed for CCD clock driver/buffer.

MD1213K6-G FAQs

6 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the MD1213K6-G?

4.5V to 13V.

What is the operating temperature range?

-20°C to 125°C (junction).

What package is the MD1213K6-G available in?

12-QFN (4x4) and 12-VQFN Exposed Pad, surface mount.

What is the peak output current of this gate driver?

2A source and sink.

What type of MOSFETs can this driver operate?

N-Channel and P-Channel MOSFETs.

Is the input compatible with 1.8V logic?

Yes, input voltage is compatible with 1.8V to 5V CMOS.
