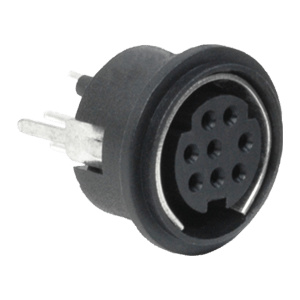

The Same Sky MD-80SV is a Mini DIN connector series designed for vertical PCB mounting. This connector series offers a range of pin options from 3 to 8 pins, indicated by the last two digits of the part number (e.g., MD-80SV for 8 pins).
Key electrical specifications include a rated input voltage of 100 Vdc and 12 Vac, with a rated input current of 1 A at 100 Vac and 2 A at 12 Vdc. The contact resistance is a maximum of 30 mΩ, and insulation resistance is a minimum of 50 MΩ at 250 Vdc. The connector can withstand 250 Vac for one minute.
Mechanical specifications include an insertion force ranging from 0.8 to 6.0 kg and a withdrawal force from 0.8 to 4.5 kg. The operating temperature range is -20 °C to 85 °C, and the connector has a life expectancy of 1,000 cycles. The body is constructed from PBT (UL94V-0) in black, with brass tin-plated earth terminals and phosphor bronze silver-plated signal terminals.
This connector is suitable for applications requiring a reliable and durable connection. Its flammability rating of UL94V-0 ensures safety in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated input voltage is 100 Vdc and 12 Vac.
The rated input current at 100 Vac is 1 A.
The operating temperature range is -20 °C to 85 °C.
The contact resistance is a maximum of 30 mΩ.
The flammability rating is UL94V-0.
The MD-SV series is available with 3, 4, 5, 6, 7, or 8 pins.
