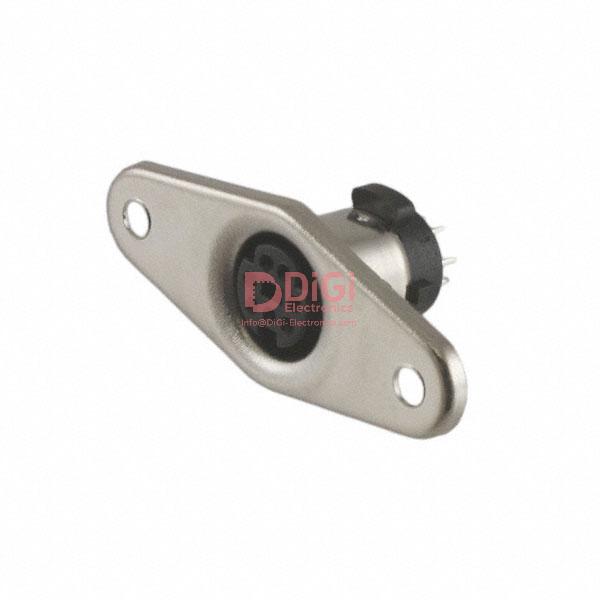

MD-70 The CUI Devices MD-70SN is a 7-position circular connector receptacle with a Mini DIN insert. It features panel mount capability and solder termination.
Mfr Part #:

MD-70

Available from 1 distributors
Mfr Name: CUI Inc.
CUI Inc.
The CUI Devices MD-70SN is a 7-position circular connector receptacle with a Mini DIN insert. It features panel mount capability and solder termination.
✓ Total Stock: 3 pcs
$ Price Range: $0.65

MD-70 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MD-70 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Failure Rate
Fastening Type
Mounting Feature
Mounting Type
Number of Positions
Orientation
Primary Material
Shell Finish
Shell Material
Termination Style
View Similar Products (0)

MD-70 Description

Short technical summary and product information.

The CUI Devices MD-70SN is a 7-position circular connector receptacle designed for reliable connections. It utilizes a Mini DIN shell size and is intended for panel mounting with a flange feature. The connector employs a push-pull fastening type and a keyed orientation for secure mating.



Termination is achieved through solder, and the primary material is metal with an iron shell finished in nickel. The contact finish is specified as 'Mating'. This connector is part of the MD-SN series and is currently active in product status.



Environmental compliance includes RoHS3 compliance, an MSL of 1 Unlimited, and REACH unaffected status. The packaging method is a bag.



This component is suitable for applications requiring a robust and keyed 7-pin connection, particularly where panel mounting and solder termination are preferred.

MD-70 Quick Information

Product Type: Circular Connector Receptacle
Series: MD-SN
Canonical Name: CUI Devices MD-70SN Mini DIN 7 Position Circular Connector Receptacle
Subcategory: Circular Connector Assemblies

MD-70 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MD-70 Estimated Pricing

Qty Low High
1+ $0.65 $0.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

MD-70 Features

  • 7-position circular connector receptacle
  • Mini DIN shell size
  • Panel mount with flange
  • Solder termination
  • Push-pull fastening type

MD-70 Applications

  • Audio equipment interconnection applications.
  • Signal and control panel wiring.
  • Consumer electronics and instrumentation.
  • Industrial control and monitoring systems.

MD-70 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type of the MD-70?

The MD-70 is a receptacle with female sockets.

How many positions does the MD-70 have?

The MD-70 has 7 positions.

What is the mounting type for the MD-70?

The MD-70 is designed for panel mount with a flange.

What termination style does the MD-70 use?

The MD-70 uses solder termination.

What is the shell material and finish of the MD-70?

The shell is made of iron with a nickel finish.

What fastening type does the MD-70 use?

The MD-70 uses a push-pull fastening type.

What series does the MD-70 belong to?

The MD-70 is part of the MD-SN series.
