| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage |

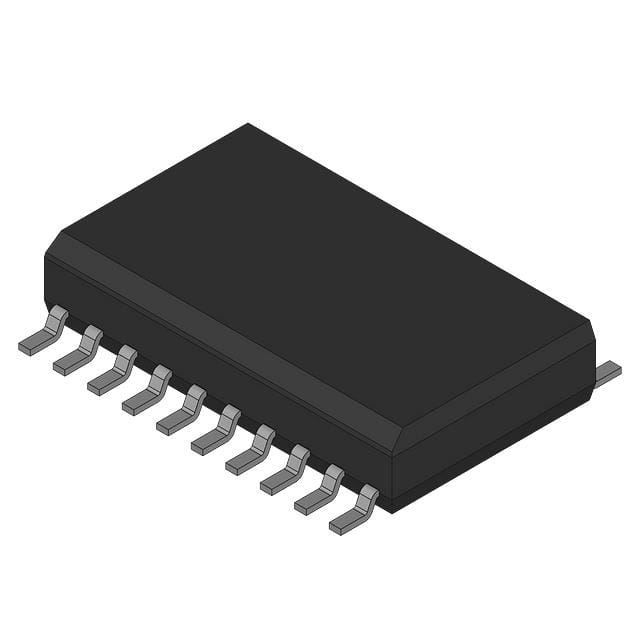

The MCZ33883EGR2 is an integrated circuit designed as a gate driver, manufactured by NXP USA Inc. This component features a half-bridge driven configuration, making it suitable for power management applications. It supports a wide operating voltage range from 5.5V to 55V and includes four independent channels for N-Channel MOSFETs.
The device is specified for an operating temperature range of -40°C to 150°C (TJ). It comes in a 20-SOIC package with surface mount mounting type, measuring 0.295 inches or 7.50mm in width. The logic voltage levels are 0.8V and 2V, with current capabilities of 1A per channel.
Environmental compliance includes RoHS3 status and REACH unaffected. The part is also described as lead-free and environmentally friendly. The moisture sensitivity level is rated as MSL 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5.5V to 55V.
It is available in a surface-mount 20-SOIC package (0.295", 7.50mm width).
The operating temperature range is -40°C to 150°C (junction).
Yes, the device is lead-free.
It has 4 independent driver channels.
It is designed for N-Channel MOSFETs.
The driven configuration is half-bridge.
