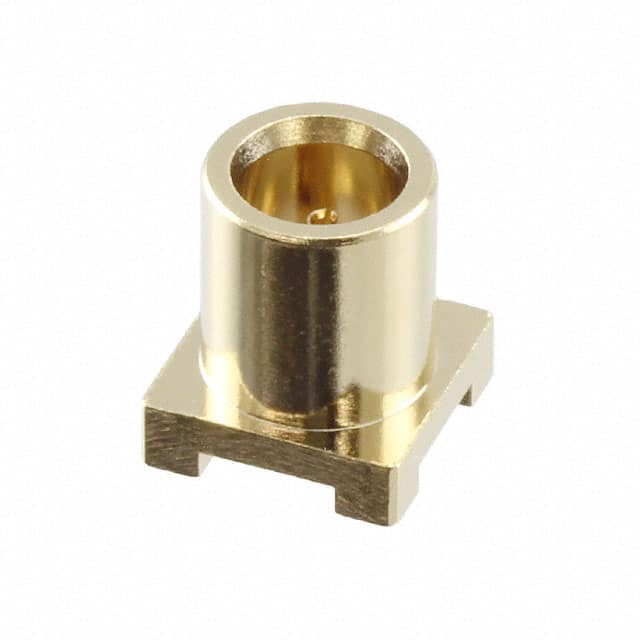

The Samtec MCX7-J-P-H-ST-SM1 is a 75 Ohm MCX jack connector featuring a female socket contact. This straight surface mount (SMT) connector is designed for RF applications up to 6 GHz. It uses a snap-on fastening mechanism for quick and secure mating.
The connector is constructed with a brass shell and a beryllium copper center contact. Both the center and outer contacts are gold plated (30 µ" center, 3 µ" outer) for reliable signal integrity. The insulator is made of PTFE, ensuring stable electrical performance across a wide temperature range from -65 °C to +125 °C.
Electrically, the connector is rated for a working voltage of 170 Vrms maximum and a dielectric withstanding voltage of 500 Vrms minimum. It is designed for lead-free soldering and is RoHS compliant, making it suitable for modern manufacturing processes.
The MCX7-J-P-H-ST-SM1 is part of Samtec's MCX7 series and is commonly used in telecommunications, test equipment, and other high-frequency systems where a compact 75 Ohm interconnect is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.82 | $4.82 |
| 50+ | $4.06 | $4.06 |
| 100+ | $3.30 | $3.30 |
| 500+ | $2.17 | $2.17 |
| 1,000+ | $1.94 | $1.94 |
| 2,000+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ohms
0 to 6 GHz
Surface Mount (SMT)
-65 °C to +125 °C
Solder
Yes, RoHS3 Compliant per datasheet.
170 Vrms maximum
