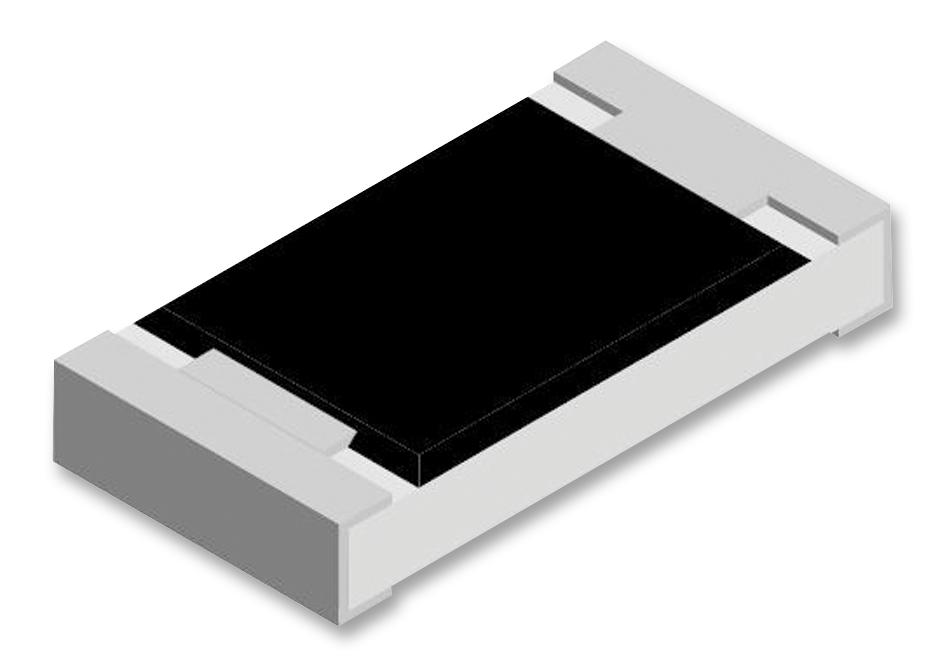

MCWF06R2403BTL The Multicomp Pro MCWF06R2403BTL is a thin film chip resistor with a resistance of 240 kOhms and a tolerance of ±0.1%. It is designed for surface mount applications.
Mfr Part #:

MCWF06R2403BTL

Available from 1 distributors
Mfr Name: Multicomp Pro
Multicomp Pro
The Multicomp Pro MCWF06R2403BTL is a thin film chip resistor with a resistance of 240 kOhms and a tolerance of ±0.1%. It is designed for surface mount applications.
✓ Total Stock: 92 pcs

MCWF06R2403BTL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
92 pcs
On Request
92 pcs On Request 1 On Request On Request 09+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCWF06R2403BTL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Mounting Type
Package / Case
Power Rating
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
Voltage Rating
View Similar Products (0)

MCWF06R2403BTL Description

Short technical summary and product information.

This Multicomp Pro MCWF06R2403BTL is a high-precision thin film chip resistor designed for surface mount applications. It features a resistance value of 240 kOhms with a tight tolerance of ±0.1%, ensuring accurate circuit performance.



The resistor has a power rating of 100 mW and a voltage rating of 75 V, making it suitable for various electronic designs. The component is housed in a compact 0603 (1608 metric) package, ideal for space-constrained PCBs. Its thin film construction contributes to low current noise and high reliability.



Constructed with a high-grade ceramic body and internal metal electrodes, the resistive layer is precisely trimmed to achieve the specified resistance value. The end terminations are lead-free, addressing environmental soldering concerns. This component belongs to the MCWF06R series, known for its stability and precision.

MCWF06R2403BTL Quick Information

Product Type: Chip Resistor - Surface Mount
Series: MCWF06R
Canonical Name: Multicomp Pro MCWF06R2403BTL Thin Film Chip Resistor
Subcategory: Surface Mount

MCWF06R2403BTL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCWF06R2403BTL Features

  • 240 kOhm resistance with ±0.1% tolerance.
  • 100mW power rating and 75V voltage rating.
  • 0603 (1608 metric) surface mount package.
  • Thin film construction for high precision.
  • High reliability and stability.

MCWF06R2403BTL Applications

  • Used in precision electronic circuits.
  • Suitable for space-constrained designs.
  • Ideal for signal conditioning applications.
  • Component for general purpose electronics.

MCWF06R2403BTL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the MCWF06R2403BTL?

The resistance value is 240 kOhms.

What is the tolerance of the MCWF06R2403BTL resistor?

The tolerance is ±0.1%.

What is the power rating for the MCWF06R2403BTL?

The power rating is 100 mW.

What is the maximum voltage rating for this chip resistor?

The maximum voltage rating is 75 V.

What is the package size of the MCWF06R2403BTL?

The package size is 0603 (1608 metric).

What type of resistor element is used in the MCWF06R2403BTL?

It uses a thin film element.
