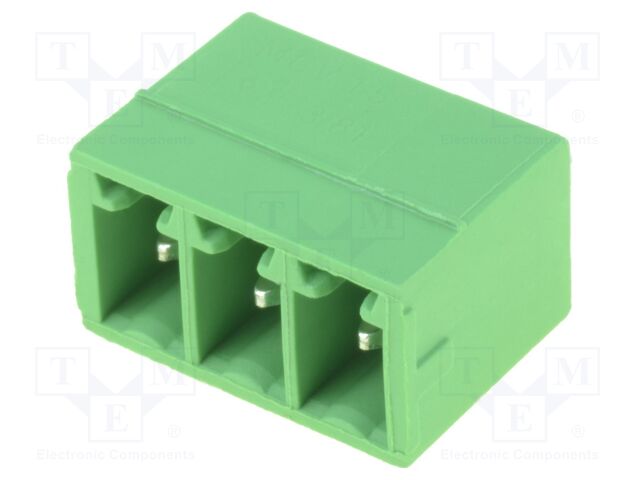

MCV1.5/3-G-3.81 Phoenix Contact MCV1.5/3-G-3.81 is a 3-position male pluggable terminal block socket with 3.81mm pitch, rated 8A at 160V, designed for PCB mounting via through-hole.
Mfr Part #:

MCV1.5/3-G-3.81

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact MCV1.5/3-G-3.81 is a 3-position male pluggable terminal block socket with 3.81mm pitch, rated 8A at 160V, designed for PCB mounting via through-hole.
✓ Total Stock: 70 pcs
$ Price Range: $1.00

MCV1.5/3-G-3.81 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
70 pcs
On Request
70 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCV1.5/3-G-3.81 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Contact Plating
Current Rating
Lead Spacing
Lead Style
Number of Pins
Rated Voltage
SVHC Present
View Similar Products (0)

MCV1.5/3-G-3.81 Description

Short technical summary and product information.

The Phoenix Contact MCV1.5/3-G-3.81 is a male pluggable terminal block socket with 3 positions arranged in a 1x3 layout at 3.81mm pitch. It is rated for 8A continuous current and 160V, suitable for signal and power distribution in industrial control and automation systems. The straight orientation and through-hole termination (THT) allow secure soldering to PCBs. A friction lock mechanism provides a reliable connection with the mating header. The green PBT housing is rated UL94V-0 for flammability, ensuring safe operation. Tinned contacts offer good solderability and corrosion resistance. The connector carries CSA, UL, and VDE approvals, confirming compliance with North American and European standards. It is packaged in cardboard boxes of 250 pieces.

MCV1.5/3-G-3.81 Quick Information

Product Type: Pluggable Terminal Block Socket
Series: MCV 1,5
Canonical Name: Phoenix Contact MCV1.5/3-G-3.81 3-Position 3.81mm Male Pluggable Terminal Block Socket
Subcategory: Headers, Plugs and Sockets

MCV1.5/3-G-3.81 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

MCV1.5/3-G-3.81 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCV1.5/3-G-3.81 Features

  • Male pluggable terminal block socket with 3 positions.
  • 3.81mm contact pitch for compact PCB layout.
  • Rated 8A at 160V for signal and power.
  • Through-hole PCB mount with straight orientation.
  • Friction lock for secure connection with header.

MCV1.5/3-G-3.81 Applications

  • Ideal for industrial control and automation PCBs.
  • Used in power supply and distribution circuits.
  • Suitable for instrumentation and measurement equipment.
  • Applicable for PCB-to-wire connections in terminal blocks.

MCV1.5/3-G-3.81 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the MCV1.5/3-G-3.81 have?

It has 3 positions arranged in a 1x3 layout.

What is the contact pitch?

The contact pitch is 3.81mm.

What are the current and voltage ratings?

The current rating is 8A and the voltage rating is 160V.

What is the mounting style?

It is designed for PCB mounting with through-hole (THT) termination.

What locking system does it use?

It uses a friction lock for secure mating.

What is the body material and flammability rating?

The body is made of PBT with a flammability rating of UL94V-0.

What approvals does the connector carry?

It is approved to CSA, UL, and VDE standards.
