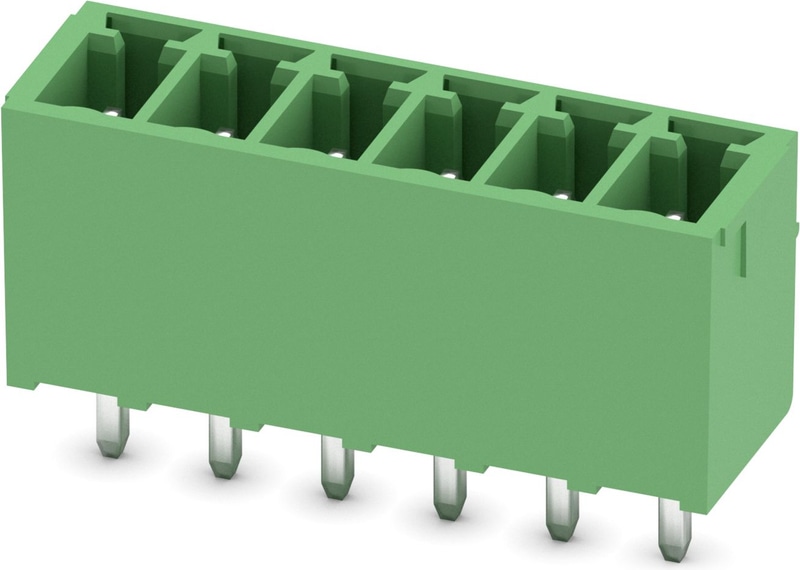

MCV 1,5/ 6-G-3,5 - 1843648 This Phoenix Contact MCV 1,5/ 6-G-3,5 is a PCB header with 6 positions and a 3.5mm pitch. It is designed for wave soldering.
Mfr Part #:

MCV 1,5/ 6-G-3,5 - 1843648

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This Phoenix Contact MCV 1,5/ 6-G-3,5 is a PCB header with 6 positions and a 3.5mm pitch. It is designed for wave soldering.
✓ Total Stock: 158 pcs
$ Price Range: $1.00

MCV 1,5/ 6-G-3,5 - 1843648 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
158 pcs
On Request
158 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCV 1,5/ 6-G-3,5 - 1843648 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Resistance
Housing Color
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

MCV 1,5/ 6-G-3,5 - 1843648 Description

Short technical summary and product information.

The Phoenix Contact MCV 1,5/ 6-G-3,5 (MPN: MCV 1,5/ 6-G-3,5) is a PCB header from the COMBICON MC 1,5 plug-in system. It features 6 positions with a 3.5 mm pitch, arranged in a single row. This header is designed for wave soldering mounting.



Electrically, it has a nominal current rating of 8 A and a nominal voltage rating of 160 V (III/2). The contact material is a tin-plated Cu alloy, and the housing is made of green PBT insulating material. The degree of pollution is rated at 3.



This component offers flexibility in device design with its vertical connection capability, enabling multi-row arrangements on the PCB. It is suitable for applications requiring reliable PCB connections with standard pin connector alignment.

MCV 1,5/ 6-G-3,5 - 1843648 Quick Information

Product Type: PCB header
Series: MCV 1,5/..-G
Canonical Name: Phoenix Contact MCV 1,5/ 6-G-3,5 PCB header
Subcategory: PCB headers

MCV 1,5/ 6-G-3,5 - 1843648 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

MCV 1,5/ 6-G-3,5 - 1843648 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCV 1,5/ 6-G-3,5 - 1843648 Features

  • 6 position PCB header with 3.5mm pitch.
  • Rated for 8A nominal current.
  • Rated for 160V nominal voltage.
  • Designed for wave soldering.
  • Green PBT housing material.

MCV 1,5/ 6-G-3,5 - 1843648 Applications

  • Ideal for PCB connections.
  • Enables multi-row arrangements.
  • Suitable for industrial controls.
  • Used in automation systems.

MCV 1,5/ 6-G-3,5 - 1843648 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the MCV 1,5/ 6-G-3,5 PCB header have?

The MCV 1,5/ 6-G-3,5 PCB header has 6 positions.

What is the pitch of the MCV 1,5/ 6-G-3,5 PCB header?

The pitch of the MCV 1,5/ 6-G-3,5 PCB header is 3.5 mm.

What is the nominal current rating for the MCV 1,5/ 6-G-3,5 PCB header?

The nominal current rating for the MCV 1,5/ 6-G-3,5 PCB header is 8 A.

What is the nominal voltage rating for the MCV 1,5/ 6-G-3,5 PCB header?

The nominal voltage rating for the MCV 1,5/ 6-G-3,5 PCB header is 160 V.

How is the MCV 1,5/ 6-G-3,5 PCB header mounted?

The MCV 1,5/ 6-G-3,5 PCB header is mounted using wave soldering.

What is the housing color of the MCV 1,5/ 6-G-3,5 PCB header?

The housing color of the MCV 1,5/ 6-G-3,5 PCB header is green.
