| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,730 pcs
|
1730 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Transfer Ratio (Min) | |
| Industrial Grade | |
| Input Type | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Turn On | |
| Vce Saturation (Max) | |
| Voltage |

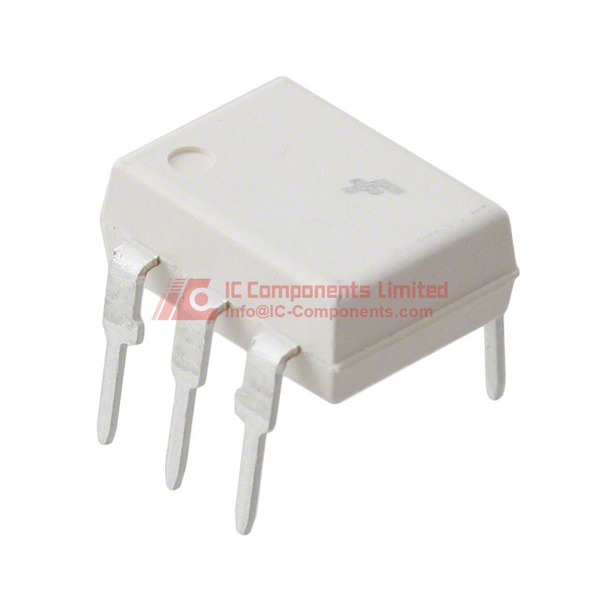

The MCT2EM from On Semiconductor is a transistor output optocoupler with a base, designed for isolation applications. It offers a high isolation voltage of 7500Vpk, making it suitable for applications requiring electrical separation.
This component operates with a DC input type and has a maximum forward current of 60 mA. The output transistor can handle up to 50 mA and has a Vce saturation voltage of 400mV maximum. Switching times are typically 2µs for turn-on and turn-off, with rise and fall times around 2µs and 1.5µs respectively. The minimum current transfer ratio is 20% at 10mA.
Designed for through-hole mounting, the MCT2EM comes in a standard 6-DIP package with dimensions of 0.300" (7.62mm). It operates within a temperature range of -40°C to 100°C. The part is supplied in tube packaging.
Key specifications include an output voltage capability of up to 30V and a typical forward voltage of 1.25V at 10mA. It features one channel for signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCT2EM optocoupler offers 7500Vpk isolation voltage.
The operating temperature range for the MCT2EM is -40°C to 100°C.
The MCT2EM is supplied in a 6-DIP package, with tube packaging.
The minimum current transfer ratio is 20% at 10mA.
The maximum DC forward current for the MCT2EM is 60 mA.
The Vce saturation voltage is 400mV maximum.
