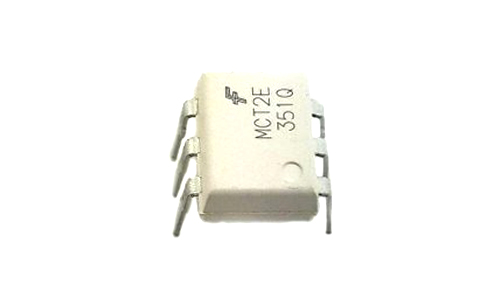

MCT2E The MCT2E is a phototransistor optocoupler from QTC, providing electrical isolation between circuits. It features a 30V collector-emitter voltage and 5mA on-state collector current.
Mfr Part #:

MCT2E

Available from 1 distributors
Mfr Name: QTC
QTC
The MCT2E is a phototransistor optocoupler from QTC, providing electrical isolation between circuits. It features a 30V collector-emitter voltage and 5mA on-state collector current.
✓ Total Stock: 20 pcs

MCT2E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCT2E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Lead Spacing
Lead Style
Package / Case
SVHC Present
Storage Temperature
Tape & Reel
View Similar Products (0)

MCT2E Description

Short technical summary and product information.

The MCT2E is a phototransistor optocoupler manufactured by QTC, designed to provide high-voltage electrical isolation between two circuits. It consists of an infrared-emitting diode optically coupled to a silicon npn phototransistor.



Key electrical specifications include a typical input diode forward voltage of 1.25V and a maximum collector-emitter voltage of 30V. The device offers a typical on-state collector current of 5mA and features typical rise and fall times of 5µs, indicating good switching speed.



This optocoupler is housed in a plastic dual-in-line package (PDIP). It operates within a temperature range of -55°C to 100°C. The MCT2E is suitable for applications requiring isolation from noisy digital electronics or for interfacing circuits with different voltage levels.



It is designed to be compatible with standard TTL integrated circuits and offers a high direct-current transfer ratio. The base lead is provided for conventional transistor biasing, although it is often unused in standard phototransistor mode.

MCT2E Quick Information

Product Type: Optocoupler
Canonical Name: MCT2E Phototransistor Optocoupler
Subcategory: Transistor Output

MCT2E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCT2E Features

  • Provides electrical isolation between circuits.
  • Typical input voltage 1.25V.
  • Maximum collector-emitter voltage 30V.
  • Typical on-state current 5mA.
  • Fast switching speeds with 5µs rise/fall times.

MCT2E Applications

  • Used for signal isolation in industrial equipment.
  • Interfacing logic signals to higher voltage domains.
  • Provides isolation in switching power supplies.
  • Suitable for replacing relays in low-power switching.

MCT2E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the MCT2E?

-55°C to 100°C.

What is the package type of the MCT2E?

PDIP (Plastic Dual Inline Package).

What is the forward voltage of the input diode?

1.25V typical at 5mA.

What is the maximum collector-emitter voltage?

30V.

What is the input-to-output isolation voltage?

3.55kV maximum.

What are the rise and fall times?

5µs typical for both rise and fall.

What is the maximum continuous forward current?

60mA.
