MCR20AVHM The NXP Semiconductors MCR20AVHM is an RF Transceiver IC designed for 802.15.4 applications. It operates in the 2.4GHz band with a maximum data rate of 250kbps.
Mfr Part #:

MCR20AVHM

Available from 2 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors MCR20AVHM is an RF Transceiver IC designed for 802.15.4 applications. It operates in the 2.4GHz band with a maximum data rate of 250kbps.
✓ Total Stock: 15,030 pcs
$ Price Range: $3.43

MCR20AVHM Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
14,570 pcs
On Request
14570 pcs On Request 1 On Request On Request On Request On Request On Request
Akira Global ✓
Non-Authorised Inventory information
460 pcs
On Request
460 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCR20AVHM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
GPIO
Modulation
Mounting Type
Operating Temperature
Power
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

MCR20AVHM Description

Short technical summary and product information.

The MCR20AVHM from NXP Semiconductors is an RF Transceiver IC specifically designed for 802.15.4 communication protocols. It operates in the 2.4GHz frequency band, supporting O-QPSK modulation and achieving a maximum data rate of 250kbps. This device offers a sensitivity of -102dBm and a power output of 8dBm, making it suitable for various wireless applications.



With an operating voltage range of 1.8V to 3.6V and a current consumption between 15mA and 19mA, the MCR20AVHM is designed for power efficiency. It features 8 GPIO pins and communicates via SPI serial interface. The operating temperature range is from -40°C to 105°C.

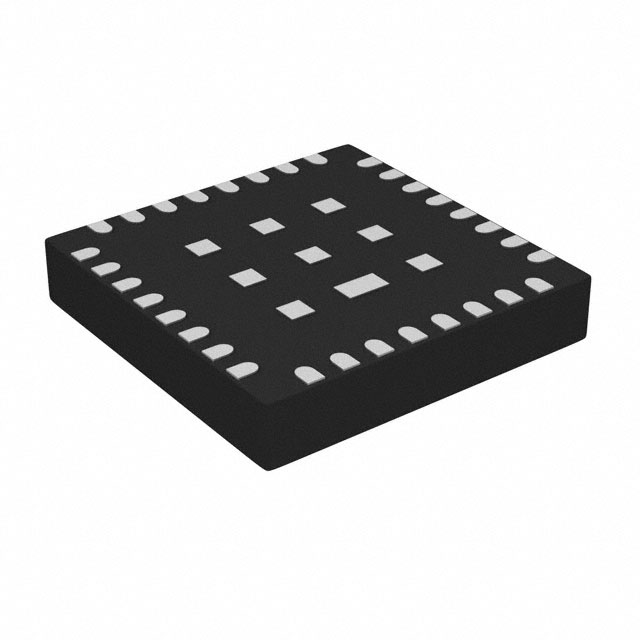

The MCR20AVHM comes in a 41-VFLGA package, suitable for surface mounting. The supplier package is identified as 41-MAPLGA (5x5). This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.

MCR20AVHM Quick Information

Product Type: RF Transceiver IC
Canonical Name: MCR20AVHM RF Transceiver IC
Subcategory: RF Transceiver ICs

MCR20AVHM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCR20AVHM Estimated Pricing

Qty Low High
1+ $3.43 $3.43

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCR20AVHM Features

  • Operates in the 2.4GHz frequency band.
  • Supports 802.15.4 communication protocols.
  • Maximum data rate of 250kbps.
  • Wide operating voltage from 1.8V to 3.6V.
  • Surface mountable 41-VFLGA package.

MCR20AVHM Applications

  • Ideal for low-power wireless networks.
  • Suitable for IoT device connectivity.
  • Used in smart home automation systems.
  • Applicable for industrial sensor networks.

MCR20AVHM FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the MCR20AVHM?

The operating voltage range is from 1.8V to 3.6V.

What package type does the MCR20AVHM use?

It uses a 41-VFLGA surface mount package.

What is the operating temperature range of the MCR20AVHM?

The operating temperature range is from -40°C to 105°C.

Is the MCR20AVHM RoHS compliant?

Yes, it is RoHS3 compliant.
