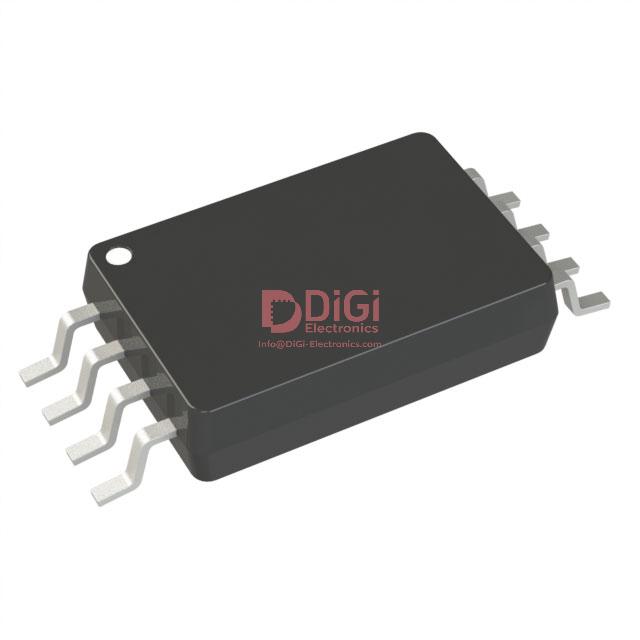

The Microchip Technology MCP9805-BE/ST is a digital temperature sensor designed for precise temperature monitoring. It converts temperatures within the range of -40°C to +125°C into a digital word, meeting JEDEC standard JC42.4 for Mobile Platform Memory Module Thermal Sensors.
This sensor offers an accuracy of ±3°C (max.) across its operating range, with specific accuracies of ±1°C (max.) from +75°C to +95°C and ±2°C (max.) from +40°C to +125°C. It operates with a voltage range of 3.0V to 3.6V and features a 2-wire SMBus/Standard mode I2C compatible interface. The device consumes a typical operating current of 200 µA and a shutdown current of 0.1 µA.
Key features include user-programmable registers for flexible settings, such as shutdown or low-power modes, and the specification of temperature event and critical output boundaries. The MCP9805 provides an Event signal that can be configured as an active-low or active-high comparator output for thermostat operation, or as a temperature event interrupt output. It can also be configured as a critical temperature output.
The MCP9805-BE/ST is available in an 8-TSSOP package suitable for surface mounting. Its typical applications include Dual In-line Memory Modules (DIMMs), Personal Computers (PCs) and Servers, Hard Disk Drives, and other PC peripherals, making it a versatile general-purpose temperature sensor.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3.3V nominal, with a range of 3.0V to 3.6V.
The MCP9805-BE/ST is available in an 8-TSSOP package. Other package options include 2x3 DFN-8 and TSSOP-8.
The operating temperature range is -40°C to +125°C.
Maximum accuracy is ±3°C over -20°C to +125°C, ±2°C from +40°C to +125°C, and ±1°C from +75°C to +95°C.
It uses an I2C/SMBus compatible digital interface.
Typical operating current is 200 µA.
Yes, shutdown current is 0.1 µA typical.
