| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Architecture | |
| Automotive Grade | |
| Data Interface | |
| Differential Output | |
| INL | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The MCP47FVB22A3T-E/ST from Microchip Technology is a 12-bit Digital to Analog Converter (DAC) designed for various applications requiring precise voltage output. This component features an I²C data interface, enabling straightforward communication with microcontrollers and other digital systems.
With a wide operating voltage range of 2.7V to 5.5V for both digital and analog supplies, the MCP47FVB22A3T-E/ST offers flexibility in system design. It provides two buffered voltage outputs and utilizes an R-2R architecture. The device has a settling time of 6µs (typical) and operates reliably within a temperature range of -40°C to 125°C.

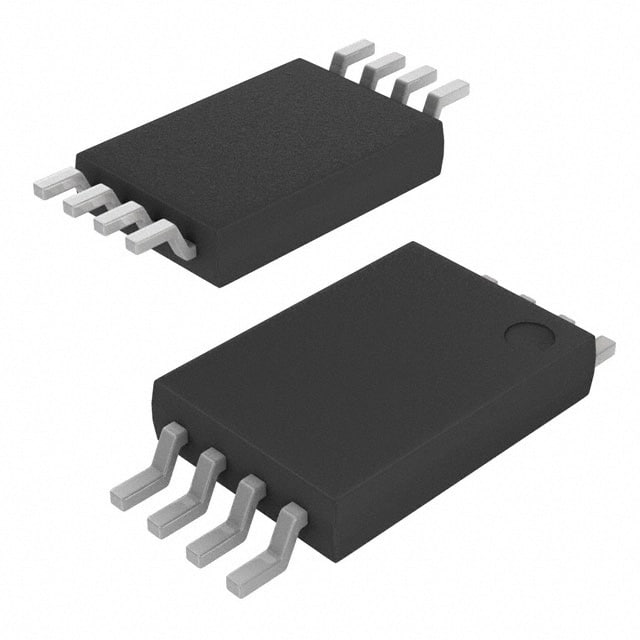

Packaged in an 8-TSSOP (0.173", 4.40mm Width) format, this DAC is designed for surface mount applications. Its INL/DNL specifications are ±1.5 LSB and ±0.2 LSB, respectively, ensuring good linearity. The part is supplied on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCP47FVB22A3T-E/ST has a resolution of 12 bits.
The data interface for the MCP47FVB22A3T-E/ST is I²C.
The operating voltage range is 2.7V to 5.5V for both digital and analog supplies.
The MCP47FVB22A3T-E/ST is available in an 8-TSSOP package.
The operating temperature range is -40°C to 125°C.
The RoHS status is RoHS3 Compliant.
