| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,525 pcs
|
29525 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

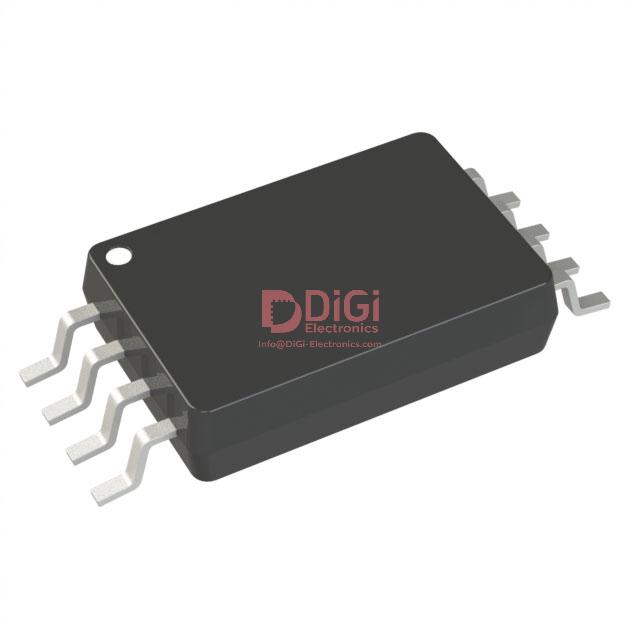

The MCP47FVB22A0T-E/ST from Microchip Technology is a 12-bit digital-to-analog converter (DAC) IC designed for various data acquisition applications. This device features two output channels, providing voltage output that is buffered. It supports an operating voltage range from 2.7V to 5.5V, making it suitable for a wide array of electronic designs.
The DAC utilizes an R-2R architecture and communicates via an I2C data interface. It offers a settling time of 6µs (typical) and supports external, internal, and supply reference types. The integral nonlinearity (INL) is specified at ±1.5, ±0.2.
Packaged in an 8-TSSOP, the MCP47FVB22A0T-E/ST is designed for surface mount applications. Its operating temperature range is from -40°C to 125°C. The device is compatible with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCP47FVB22A0T-E/ST has a resolution of 12 bits.
This chip features 2 digital-to-analog converters.
The typical settling time is 6µs.
It uses the I2C data interface.
The operating voltage range is 2.7V to 5.5V.
The operating temperature range is -40°C to 125°C.
It is supplied in an 8-TSSOP package.
