| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,510 pcs
|
29510 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Package / Case | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

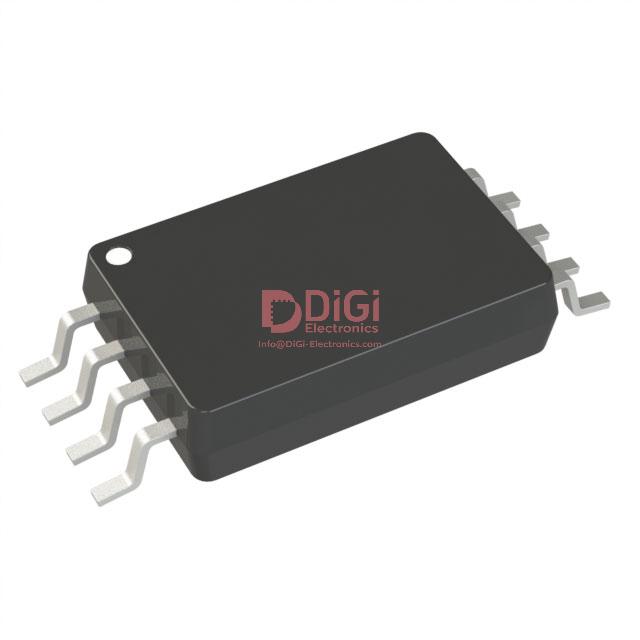

The MCP47FVB12A1-E/ST from Microchip Technology is a 10-bit, 2-channel digital-to-analog converter (DAC) designed for various data acquisition applications. It utilizes an R-2R architecture and communicates via an I2C interface, offering a buffered voltage output.
Key electrical specifications include a 10-bit resolution and a settling time of 6µs (typical). The device supports both external and internal voltage references, operating across a supply voltage range of 2.7V to 5.5V for both analog and digital supplies. Linearity error is specified at ±0.4 LSB (INL) and ±0.05 LSB (DNL).
This DAC is housed in an 8-TSSOP package, suitable for surface mounting. It operates within a temperature range of -40°C to 125°C. The MCP47FVB12A1-E/ST is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCP47FVB12A1-E/ST has a resolution of 10 bits.
This chip features 2 digital-to-analog converters.
The typical settling time is 6µs.
The operating voltage range is 2.7V to 5.5V.
It is supplied in an 8-TSSOP package.
The operating temperature range is -40°C to 125°C.
