| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,466 pcs
|
29466 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

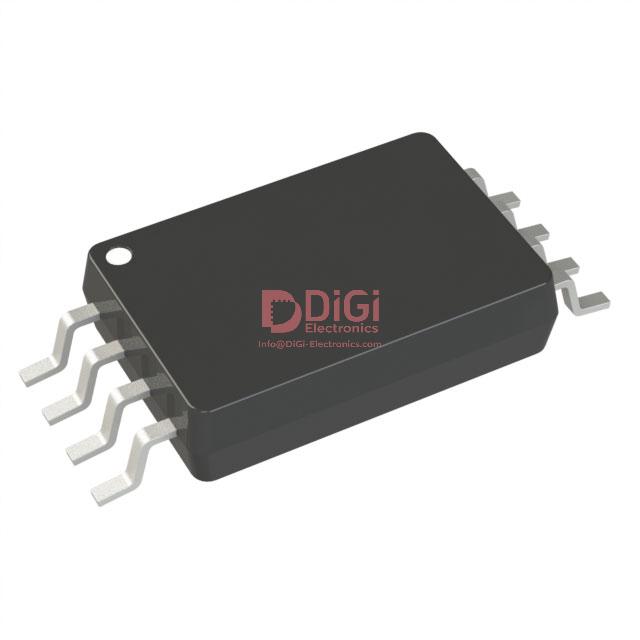

The MCP47FEB12A3-E/ST from Microchip Technology is a 10-bit, dual-channel digital-to-analog converter (DAC) IC. It is designed for applications requiring precise voltage output control.
Key electrical specifications include a 10-bit resolution and two buffered voltage outputs. The device supports an I2C data interface for communication. It operates with a supply voltage ranging from 2.7V to 5.5V for both analog and digital supplies. The settling time is typically 6µs, and it offers both external and internal reference types.
This DAC IC is housed in an 8-TSSOP package, suitable for surface mounting. The operating temperature range is -40°C to 125°C, making it suitable for various environmental conditions. The architecture is R-2R, and it provides non-inverting voltage output.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as unverified in the database.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCP47FEB12A3-E/ST has a resolution of 10 bits.
There are 2 digital to analog converters on the MCP47FEB12A3-E/ST.
The typical settling time for the MCP47FEB12A3-E/ST is 6µs.
The MCP47FEB12A3-E/ST operates in a temperature range of -40°C to 125°C.
The supply voltage for the MCP47FEB12A3-E/ST is 2.7V to 5.5V.
The MCP47FEB12A3-E/ST uses an I2C interface.
The MCP47FEB12A3-E/ST is supplied in an 8-TSSOP package.
