The MCP4716A0T-E/MAY from Microchip Technology is a single-channel, 10-bit buffered voltage output Digital-to-Analog Converter (DAC) with nonvolatile memory and an I2C serial interface. This device, part of the MCP47X6 family, offers output voltage resolutions of 8-bit (MCP4706), 10-bit (MCP4716), and 12-bit (MCP4726).
Key electrical specifications include a single-supply operation range of 2.7V to 5.5V, a fast settling time of 6 µs typical, and I2C interface support for standard (100 kbps), fast (400 kbps), and high-speed (3.4 Mbps) modes. The DAC features rail-to-rail output and offers options for DAC voltage reference, including VDD or an external VREF pin. Output gain options include unity (1x) and 2x when the VREF pin is used.
This DAC family includes nonvolatile memory (EEPROM) for auto-recall of DAC register settings and device configuration, such as voltage reference, gain, and power-down states. Power-down modes are available to reduce system current consumption, with selectable output buffer pull-down resistors. The operating temperature range is extended from -40°C to +125°C.
The MCP4716A0T-E/MAY is available in a compact 6-lead DFN (2x2 mm) package, suitable for surface mounting. Its features make it ideal for applications such as set point or offset trimming, sensor calibration, low-power portable instrumentation, PC peripherals, data acquisition systems, and motor control.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The MCP4716A0T-E/MAY has a 10-bit output voltage resolution.
This DAC operates from a single supply voltage of 2.7V to 5.5V.

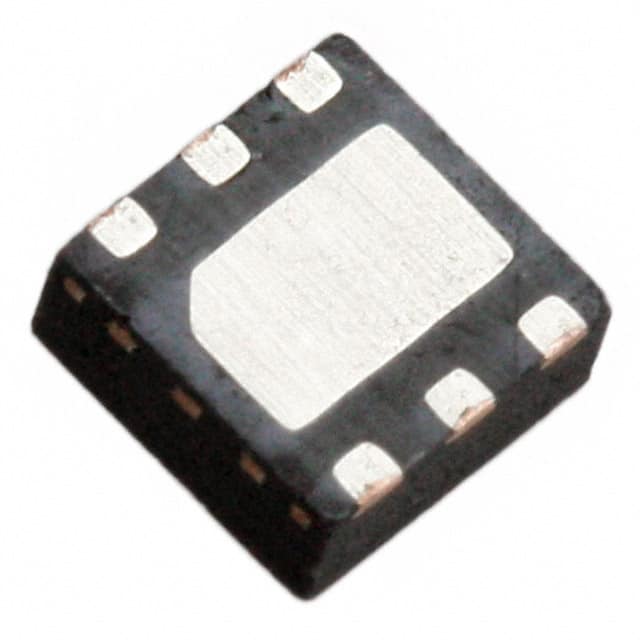

The MCP4716A0T-E/MAY is supplied in a 6-lead DFN (2x2 mm) package with an exposed pad.
The device operates within an extended temperature range of -40°C to +125°C.
This DAC utilizes an I2C interface.
The typical settling time for this DAC is 6 µs.
Yes, the MCP4716A0T-E/MAY features nonvolatile memory (EEPROM) for auto-recall of DAC register settings and device configuration.
