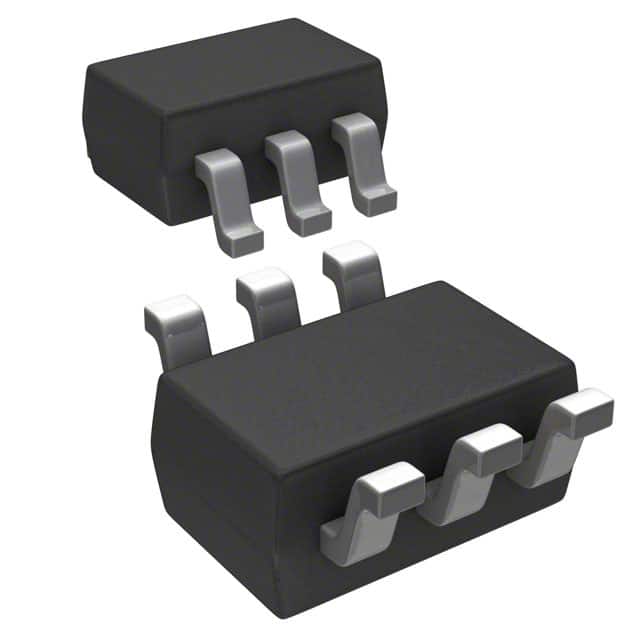

MCP4018T-502E/LT The Microchip Technology MCP4018T-502E/LT is a 7-bit digital potentiometer with a 5k Ohm resistance and 128 taps. It operates via an I2C interface and is housed in a compact SC-70-6 package.
Mfr Part #:

MCP4018T-502E/LT

Available from 3 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology MCP4018T-502E/LT is a 7-bit digital potentiometer with a 5k Ohm resistance and 128 taps. It operates via an I2C interface and is housed in a compact SC-70-6 package.
✓ Total Stock: 12,739 pcs
$ Price Range: $1.36

MCP4018T-502E/LT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
10,000 pcs
On Request
10000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,264 pcs
On Request
2264 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
475 pcs
On Request
475 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCP4018T-502E/LT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Configuration
Interface
Lead Spacing
Memory Type
Mounting Type
Number of Circuits
Number of Taps
Operating Temperature
Resistance
Resistance (Ohms)
Supplier Device Package
Tape & Reel
Taper
Temperature Coefficient (Typ)
Tolerance
Voltage
View Similar Products (0)

MCP4018T-502E/LT Description

Short technical summary and product information.

The MCP4018T-502E/LT from Microchip Technology is a single-circuit digital potentiometer designed for various electronic applications. It offers a resistance value of 5k Ohms with a linear taper and 128 steps, providing precise control.



This device utilizes an I2C interface for communication, making it easy to integrate into digital systems. It operates within a wide voltage range of 1.8V to 5.5V, with characteristics specified from 2.7V to 5.5V. The potentiometer features a low wiper resistance of 100 Ohms typical and a tolerance of ±20%.



Designed for surface mounting, the MCP4018T-502E/LT comes in a small SC-70-6 package. It operates across an extended temperature range of -40°C to 125°C, suitable for demanding environments. The device also features volatile memory and a low static current consumption of 2.5 µA typical.

MCP4018T-502E/LT Quick Information

Product Type: Digital Potentiometer
Canonical Name: MCP4018T-502E/LT 7-Bit Single I2C Digital Potentiometer 5k Ohm 128 Taps Volatile Memory SC-70-6
Subcategory: Data Acquisition

MCP4018T-502E/LT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCP4018T-502E/LT Estimated Pricing

Qty Low High
1+ $1.36 $1.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCP4018T-502E/LT Features

  • 5k Ohm resistance with 128 steps
  • I2C serial interface for control
  • 1.8V to 5.5V operating voltage range
  • Surface mount SC-70-6 package
  • Volatile memory for settings

MCP4018T-502E/LT Applications

  • Adjusting voltage levels in circuits
  • Controlling signal gain
  • Setting reference voltages
  • Digital volume control applications

MCP4018T-502E/LT FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance of the MCP4018T-502E/LT?

The MCP4018T-502E/LT has a resistance of 5k Ohms.

How many taps does this digital potentiometer have?

This digital potentiometer has 128 taps.

What is the operating voltage range for the MCP4018T-502E/LT?

The operating voltage range is 1.8V to 5.5V.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What type of interface does the MCP4018T-502E/LT use?

It uses an I2C interface.

What is the package type for this component?

The package type is SC-70-6.
