| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |
The MCP1754T-3302E/DC is a CMOS low dropout (LDO) voltage regulator from Microchip Technology, capable of delivering up to 150 mA of current while consuming a low quiescent current of 56.0 µA typical.
This regulator operates with an input voltage range of 3.6V to 16.0V, making it suitable for battery-powered applications. It features a low-dropout voltage of 300 mV typical at 150 mA and offers an output voltage tolerance of ±0.4% typical at +25°C and ±2.0% over the entire temperature range. The output voltage can range from 1.8V to 5.5V.
Key features include high PSRR (>70 dB @ 1 kHz), power good output, shutdown input, true current foldback protection, short-circuit protection, and overtemperature protection. The device is stable with a minimum 1.0 µF output capacitance.

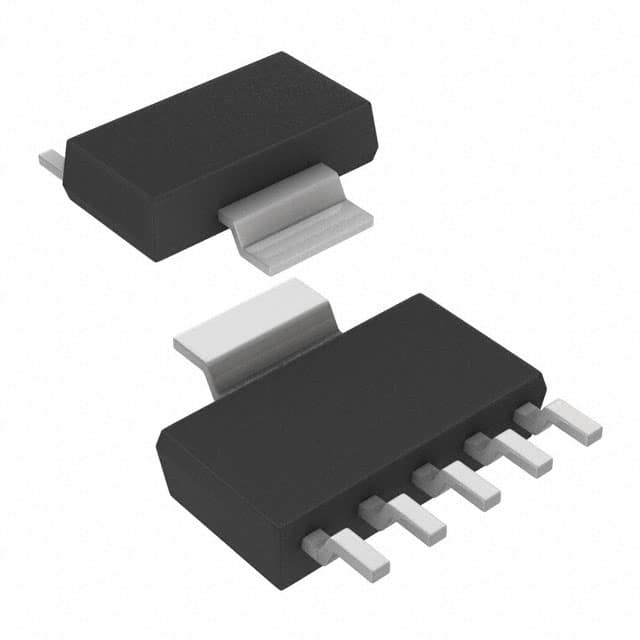

The MCP1754T-3302E/DC is supplied in a SOT-223-5 surface-mount package. Its operating temperature range is -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.6V to 16.0V.
The MCP1754T-3302E/DC can deliver up to 150 mA of output current.
The typical quiescent current is 56.0 µA.
The low dropout voltage is 300 mV typical at 150 mA.
The output voltage tolerance is ±2.0% over the entire temperature range.
The package type is SOT-223-5.
Protection features include Over Temperature, Short Circuit, and Under Voltage Lockout (UVLO).
