| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57,350 pcs
|
57350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
640 pcs
|
640 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Voltage | |
| Voltage Dropout (Max) |
The MCP1702T-2502E/MB from Microchip Technology is a CMOS low dropout (LDO) voltage regulator designed for battery-powered applications. It provides a fixed 2.5V output voltage and can deliver up to 250 mA of current. A key feature is its exceptionally low quiescent current, typically only 2.0 µA, which is crucial for extending battery life.
The device operates with an input voltage range of 2.7V to 13.2V. It offers a low dropout voltage of 625 mV typical at 250 mA and maintains a typical output voltage tolerance of ±0.4% at +25°C. Protection features include overcurrent, overtemperature, and short-circuit protection, making it a robust solution.

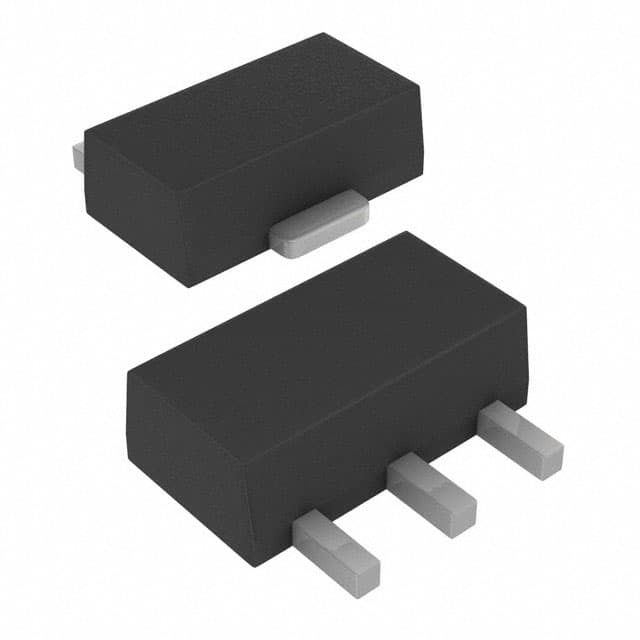

The MCP1702T-2502E/MB is supplied in a SOT-89-3 surface-mount package, suitable for various electronic designs. Its applications include battery-powered devices, alarm circuits, pagers, cellular phones, and microcontroller power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input operating voltage range is 2.7V to 13.2V.
The operating temperature range is -40°C to +125°C.
The regulator can deliver 250mA for output voltages 2.5V and above, and 200mA for output voltages below 2.5V.
Typical dropout voltage is 625mV at 250mA load; maximum is 1.1V at 250mA.
It is available in a SOT-89-3 (TO-243AA) surface-mount package.
It includes overcurrent, overtemperature, and short-circuit protection.
Typical output voltage tolerance is ±0.4% at 25°C, and maximum ±3% over the -40°C to +125°C temperature range.
