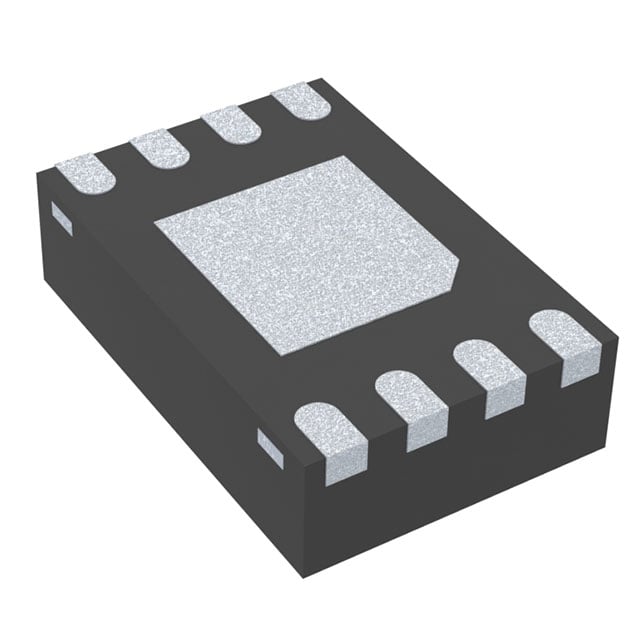

MCP1640D-I/MC The Microchip Technology MCP1640D-I/MC is an adjustable boost DC-DC switching regulator. It features a wide input voltage range and a surface mount package.
Mfr Part #:

MCP1640D-I/MC

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology MCP1640D-I/MC is an adjustable boost DC-DC switching regulator. It features a wide input voltage range and a surface mount package.
✓ Total Stock: 10,800 pcs
$ Price Range: $2.95

MCP1640D-I/MC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10,800 pcs
On Request
10800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

MCP1640D-I/MC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Function
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Outputs
Output Configuration
Output Type
Storage Temperature
Synchronous Rectifier
Tape & Reel
Topology
View Similar Products (0)

MCP1640D-I/MC Description

Short technical summary and product information.

The MCP1640D-I/MC from Microchip Technology is a versatile DC-DC switching regulator designed for boost applications. It accepts an input voltage range from 0.8V to 5.5V and can provide an adjustable output voltage between 2V and 5.5V, with a maximum output current of 350mA. This device operates at a switching frequency of 500kHz and includes a synchronous rectifier for improved efficiency.



Designed for surface mounting, the MCP1640D-I/MC comes in an 8-VFDFN exposed pad package, making it suitable for space-constrained applications. The operating temperature range is from -40°C to 125°C (TJ), ensuring reliable performance in various environmental conditions. Its step-up topology and adjustable output make it a flexible component for power management solutions.



This component is categorized under Voltage Regulators - DC DC Switching Regulators and is part of Microchip Technology's power management IC offerings. Its specifications make it a suitable choice for battery-powered devices and other applications requiring voltage boosting.

MCP1640D-I/MC Quick Information

Product Type: Voltage Regulator
Canonical Name: MCP1640D-I/MC
Subcategory: Boost Converter

MCP1640D-I/MC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

MCP1640D-I/MC Estimated Pricing

Qty Low High
1+ $2.95 $2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCP1640D-I/MC Features

  • Adjustable boost DC-DC switching regulator.
  • Input voltage range: 0.8V to 5.5V.
  • Output current capability: 350mA.
  • Surface mount 8-VFDFN exposed pad package.
  • Wide operating temperature: -40°C to 125°C.

MCP1640D-I/MC Applications

  • Ideal for battery-powered devices.
  • Suitable for voltage step-up applications.
  • Used in portable electronic equipment.
  • Power management in compact designs.

MCP1640D-I/MC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the MCP1640D-I/MC?

The input voltage range is from 0.8V to 5.5V.

What is the adjustable output voltage range?

The output voltage can be adjusted between 2V and 5.5V.

What is the maximum output current?

The maximum output current is 350mA.

What is the switching frequency?

The switching frequency is 500kHz.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C (TJ).

What type of package is the MCP1640D-I/MC in?

It is in an 8-VFDFN Exposed Pad package for surface mounting.
