| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
319 pcs
|
319 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output Type | |
| Reset Timeout | |
| SVHC Present | |
| Tape & Reel |

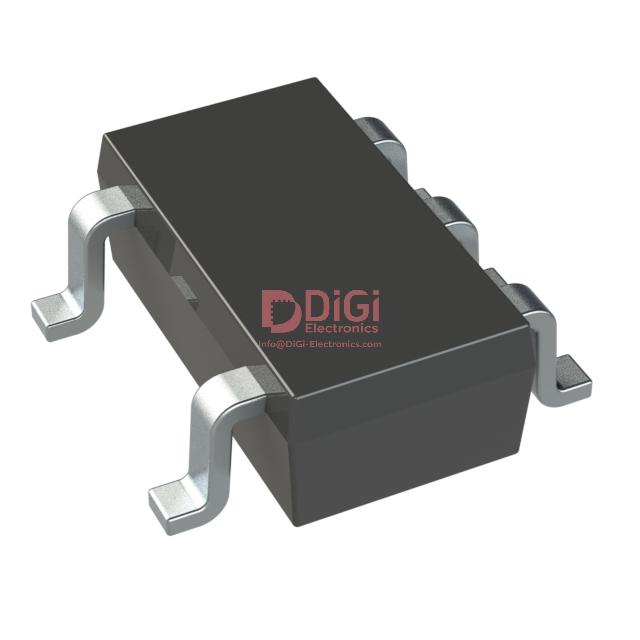

The MCP1316T-20LI/OT is a voltage supervisor integrated circuit manufactured by Microchip Technology. This device is designed to monitor a single voltage level and provide a reset signal when that level drops below a specified threshold. It features a 2V threshold and an active low reset output, with a reset timeout of 140ms minimum.
The supervisor operates within a temperature range of -40°C to 85°C and is housed in a compact SOT-23-5 surface-mount package. Its push-pull, totem pole output configuration is suitable for various power management applications. The device is classified under power management ICs and specifically within the supervisor subcategory.
This component is suitable for applications requiring reliable voltage monitoring and reset functionality. Its small footprint and surface-mount design make it ideal for integration into space-constrained electronic systems. The active low reset ensures proper system initialization during power-up or voltage fluctuations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage threshold for the MCP1316T-20LI/OT is 2V.
The reset timeout is a minimum of 140ms.
The operating temperature range is -40°C to 85°C.
It provides an active low reset and a power-on reset.
It is supplied in a SOT-23-5 package.
