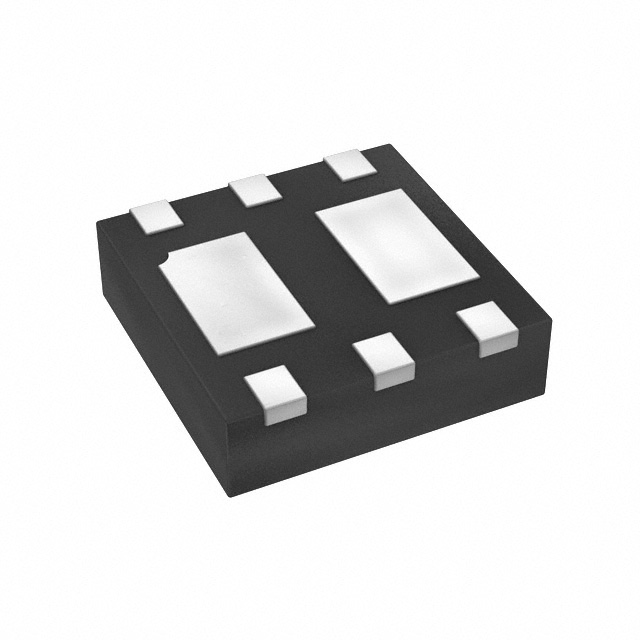

Mfr Part #:

MCMNP517-TP

Name: MCMNP517-TP
Brand: Micro Commercial Co.
SKU: MCMNP517-TP

Description:

MOSFET N/P-CH 12V 6A/4.1A

Stock on Request

MCMNP517-TP Description

Short technical summary and product information.

MOSFET N/P-CH 12V 6A/4.1A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Micro Commercial Co.
Configuration	N and P-Channel
Current	6A, 4.1A
Drain to Source Voltage (Vdss)	12V
FET Feature	Logic Level Gate, 1.8V Drive
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	630pF @ 10V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs	24mOhm @ 6A, 10V
Supplier Device Package	DFN2020-6U
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1V @ 250µA
