Mfr Part #:

MCIMX7D7DVM10SD

The NXP Semiconductors MCIMX7D7DVM10SD is a microprocessor featuring dual ARM Cortex cores and a 1.0GHz clock speed. It supports various interfaces including USB, Ethernet, and LCD.

✓ Total Stock: 5,595 pcs

$ Price Range: $11.19

MCIMX7D7DVM10SD Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	2,100 pcs On Request	2100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Flip Electronics ✓ Non-Authorised Inventory information	2,025 pcs On Request	2025 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,470 pcs On Request	1470 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

MCIMX7D7DVM10SD Description

Short technical summary and product information.

The MCIMX7D7DVM10SD from NXP Semiconductors is a powerful microprocessor designed for embedded applications. It features a dual-core architecture with an ARM® Cortex®-A7 and an ARM® Cortex®-M4 processor, operating at a speed of 1.0GHz.

This device supports a wide range of interfaces, including multiple USB 2.0 ports, 10/100/1000Mbps Ethernet, and display controllers for Keypad and LCD, as well as MIPI. Memory support includes LPDDR2, LPDDR3, DDR3, and DDR3L RAM controllers.

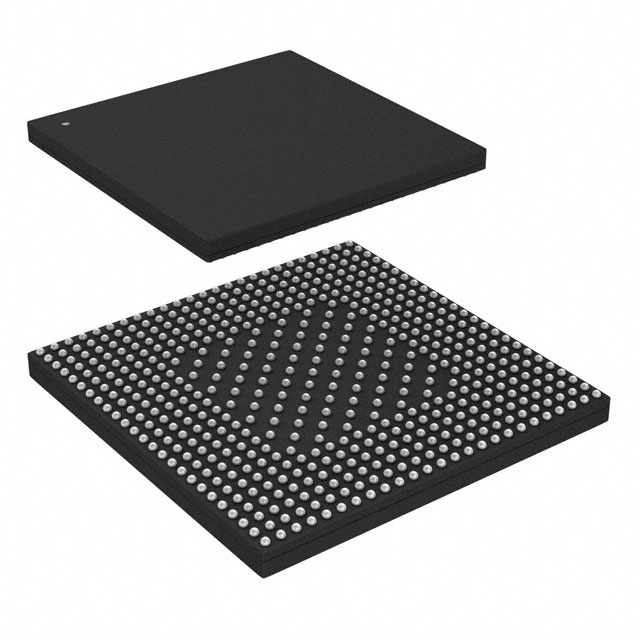

Packaged in a 541-MAPBGA or 541-LFBGA, the MCIMX7D7DVM10SD is designed for surface mount applications. It operates within a temperature range of 0°C to 95°C (TJ) and utilizes operating voltages of 1.8V and 3.3V. Security features such as A-HAB, ARM TZ, CAAM, CSU, SJC, and SNVS are integrated for enhanced protection.

MCIMX7D7DVM10SD Quick Information

Product Type: Microprocessor

Canonical Name: MCIMX7D7DVM10SD Microprocessor

Subcategory: Embedded

MCIMX7D7DVM10SD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

MCIMX7D7DVM10SD Estimated Pricing

Qty	Low	High
1+	$11.19	$11.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

MCIMX7D7DVM10SD Features

Dual ARM Cortex-A7 and Cortex-M4 cores.
1.0GHz processor speed for high performance.
Integrated graphics and display interface controllers.
Multiple USB 2.0 and dual Gigabit Ethernet ports.
Supports LPDDR2/3 and DDR3/3L memory.

MCIMX7D7DVM10SD Applications

Ideal for embedded system designs.
Suitable for applications requiring high processing power.
Used in devices needing extensive connectivity.
Supports graphical user interfaces via LCD controller.

MCIMX7D7DVM10SD FAQs

6 frequently asked questions generated from this part’s specifications.

What type of processor cores does the MCIMX7D7DVM10SD have?

It features ARM® Cortex®-A7 and ARM® Cortex®-M4 cores.

What is the operating speed of the MCIMX7D7DVM10SD?

The operating speed is 1.0GHz.

How many cores does the MCIMX7D7DVM10SD have?

It has 2 cores.

What are the operating voltage requirements?

The operating voltages are 1.8V and 3.3V.

What is the operating temperature range?

The operating temperature range is 0°C to 95°C (TJ).

What package options are available for the MCIMX7D7DVM10SD?

It is available in 541-MAPBGA and 541-LFBGA packages.

Category	Microprocessors
Manufacturer Name	NXP Semiconductors
Co	Multimedia; NEON™ MPE
Core Processor	ARM® Cortex®-A7, ARM® Cortex®-M4
Display & Interface Controllers	Keypad, LCD, MIPI
Ethernet	10/100/1000Mbps (2)
Graphics Acceleration	No
Mounting Type	Surface Mount
Number of Cores	2
Operating Temperature	[{'min': 0.0, 'max': 95.0, 'unit': 'C', 'display_value': '0°C ~ 95°C (TJ)'}]
RAM Controllers	LPDDR2, LPDDR3, DDR3, DDR3L
Security Features	A-HAB, ARM TZ, CAAM, CSU, SJC, SNVS
Speed	1.0GHz
Supplier Device Package	541-MAPBGA (19x19)
Supplier Package	541-MAPBGA (19x19)
USB	USB 2.0 + PHY (1), USB 2.0 OTG + PHY (2)
Voltage	[{'min': 1.8, 'max': 3.3, 'unit': 'V', 'display_value': '1.8V, 3.3V'}]
